GPD19W Product Information19.5" Low Profile Enclosure with Built-in Cover Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | GPD19W |

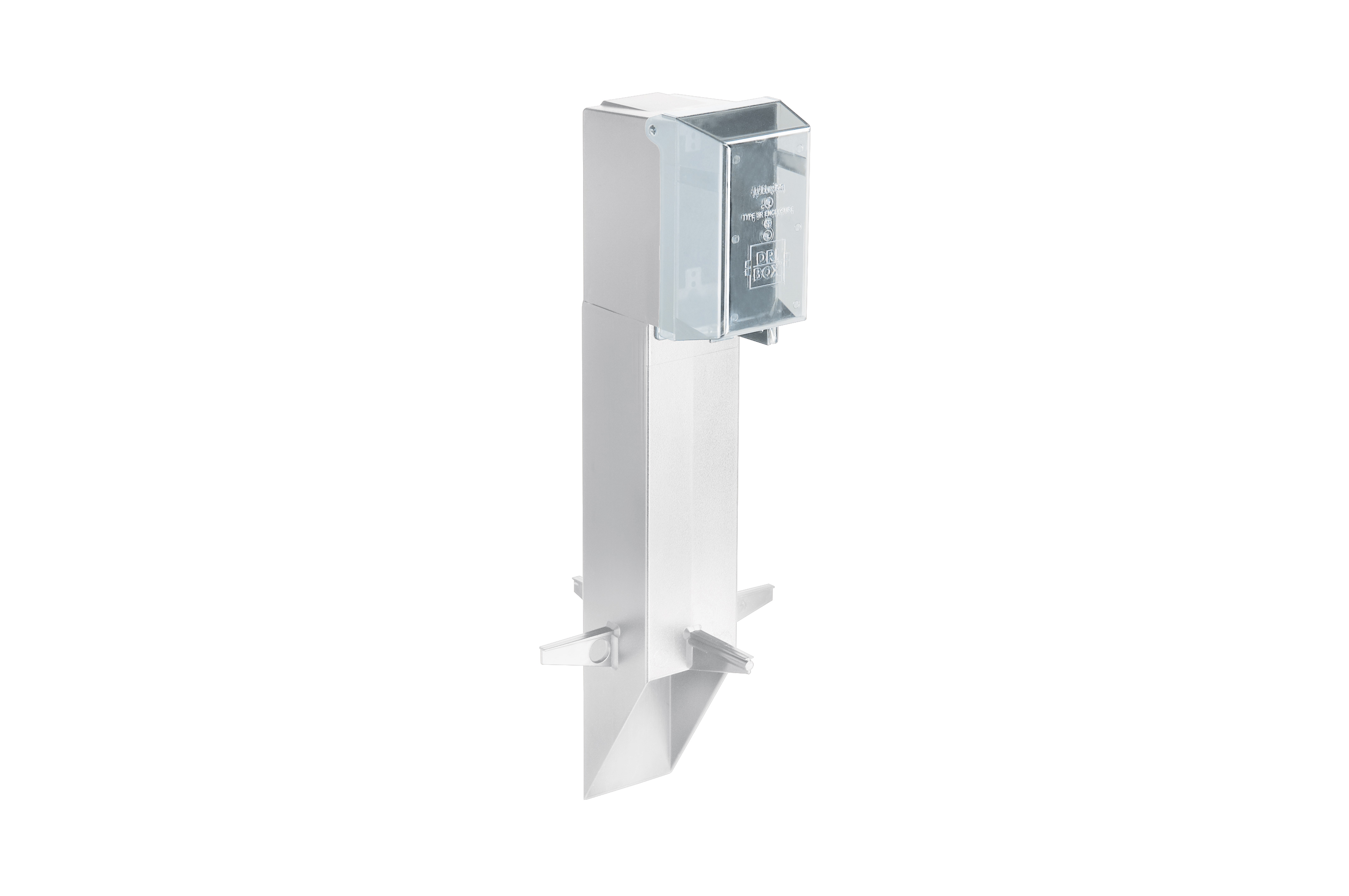

| Description | Gard-N-Post. 19.5" support for GFCI devices outdoors. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. Two 1/2" Knockouts. Color White. Color is permanent, no chipping. Clear extra duty weatherproof in use cover installed. |
| UPC | 018997770233 |
| Unit Packaging | 1pc |
| Standard Packaging | 6pcs |
| Country of Origin |  |
| Listing |
|
| Available w/ Grounding Clip | Yes - Order Part Number GPD19WGC |
Physical Information
| Instruction Sheet | GPD19W Instruction Sheet |
| Weight | 1.978 lbs/each |
| Height | 19.500" |
| Width | 6.269" |
| Color |  White |
| Cover Color |  Clear |
| Additional Color Options |  Black - GPD19B Bronze - GPD19BR Green - GPD19G |
| Material(s) | UV-Rated Plastic |
Technical Information
| Line Drawing | GPD19W Line Drawing |
| Application | Installation of a weatherproof GFCI device outdoors |
| Extra-Duty Rated | Yes |
| NEC Requirements | Meets 2021 NEC Section 406.9; for the protection of exterior outlets which require the use of an extra-duty weatherproof while-in-use cover for all outdoor 15 or 20 AMP receptacles. |
| Trade Size | 19.5" |
Comes With
| (1) | Single-Gang Wall Plate with screw(s) |
| (1) | Single-Gang Decorator-Style / GFCI Wall Plate with screws |
| (1) | Removable knock-out plate |
| (1) | Gard-N-Post |
| (1) | Built-in cover |
| (2) | #8 x 5/8" Long Screws |
