GPLN19B Product Information

19.5" Low Profile Support for 3-Wire Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GPLN19B

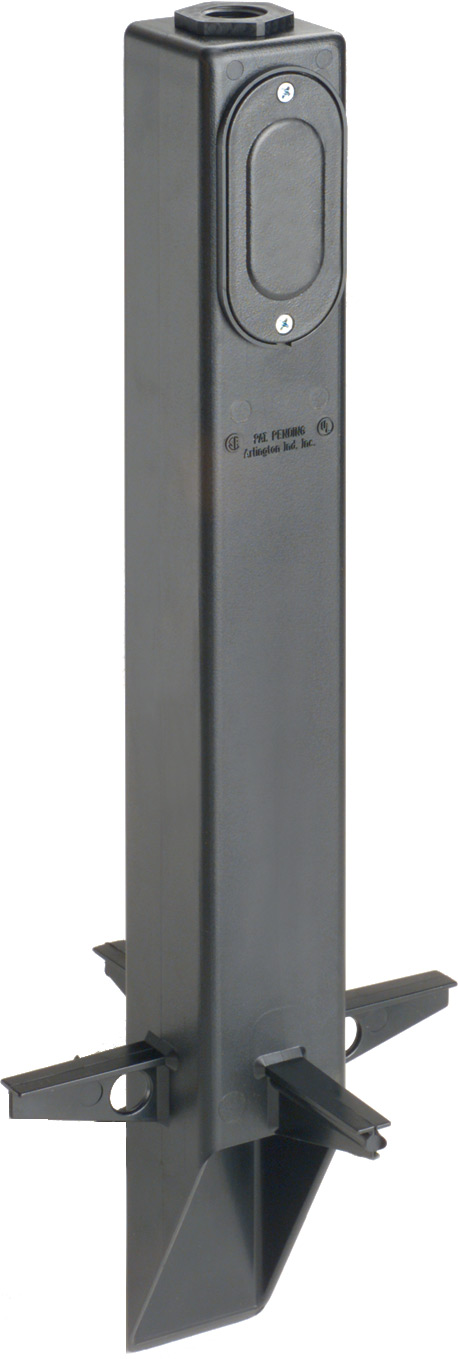

Description Install three wire outdoor light fixtures anywhere outside with Arlington's Gard-N-Post. The 19.5" support is made of black UV rated plastic for a long outdoor life. The color will not chip off, since the color permeates the whole post. It comes with a 3/4" NPT threaded opening on top with a 1/2" reducing bushing installed for installing a wide variety of light fixtures. The base of the Gard-N-Post has four built-in stabilizers, as well as an angled base for easy underground wiring access. There is also an installed cover to access the fixture wire easily.
UPC 018997691088
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing

Physical Information

Weight1.080 lbs/each
Height19.500"
Width2.250"
Color Black
Additional Color Options Bronze - GPLN19BR
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPLN19B Line Drawing
ApplicationInstallation of a 3-wire lighting fixture outdoors.
In the Box(1) 19.5" Gard-N-Post™
(1) Access Panel Cover
(1) Gasket
(1) Installed 3/4" x 1/2" NPT Non-Metallic Bushing
