GPL19B Product Information

19.5" Low Profile Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Basic Information

Part Number GPL19B

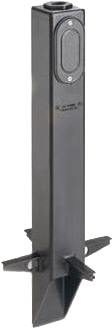

Description For when you only need to install outdoor light fixtures, choose Arlington's low-profile Gard-N-Post. The 19.5" UV rated black plastic post can accommodate most outdoor fixtures with a 3/4" or 1/2" NPT. The base has built-in stabilizers for extra stability and also has an angled base for easy access to underground wiring. The access panel has a built-in knockout for installation of a photocell, and the color of the post will not chip off.
UPC 018997770004
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin

Physical Information

Weight1.358 lbs/each
Color Black
Additional Color Options Bronze - GPL19BR
Green - GPL19G
White - GPL19W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPL19B Line Drawing
ApplicationInstallation of a 2 or 3-wire lighting fixture outdoors.
In the Box(1) 19.5" Gard-N-Post™
(1) Access Panel Cover
(1) Gasket
(1) 3/4" x 1/2" NPT Metal Grounding Bushing
(1) Locknut with Copper Ground Wire
Knockout Size(s)(1) 1/2"
