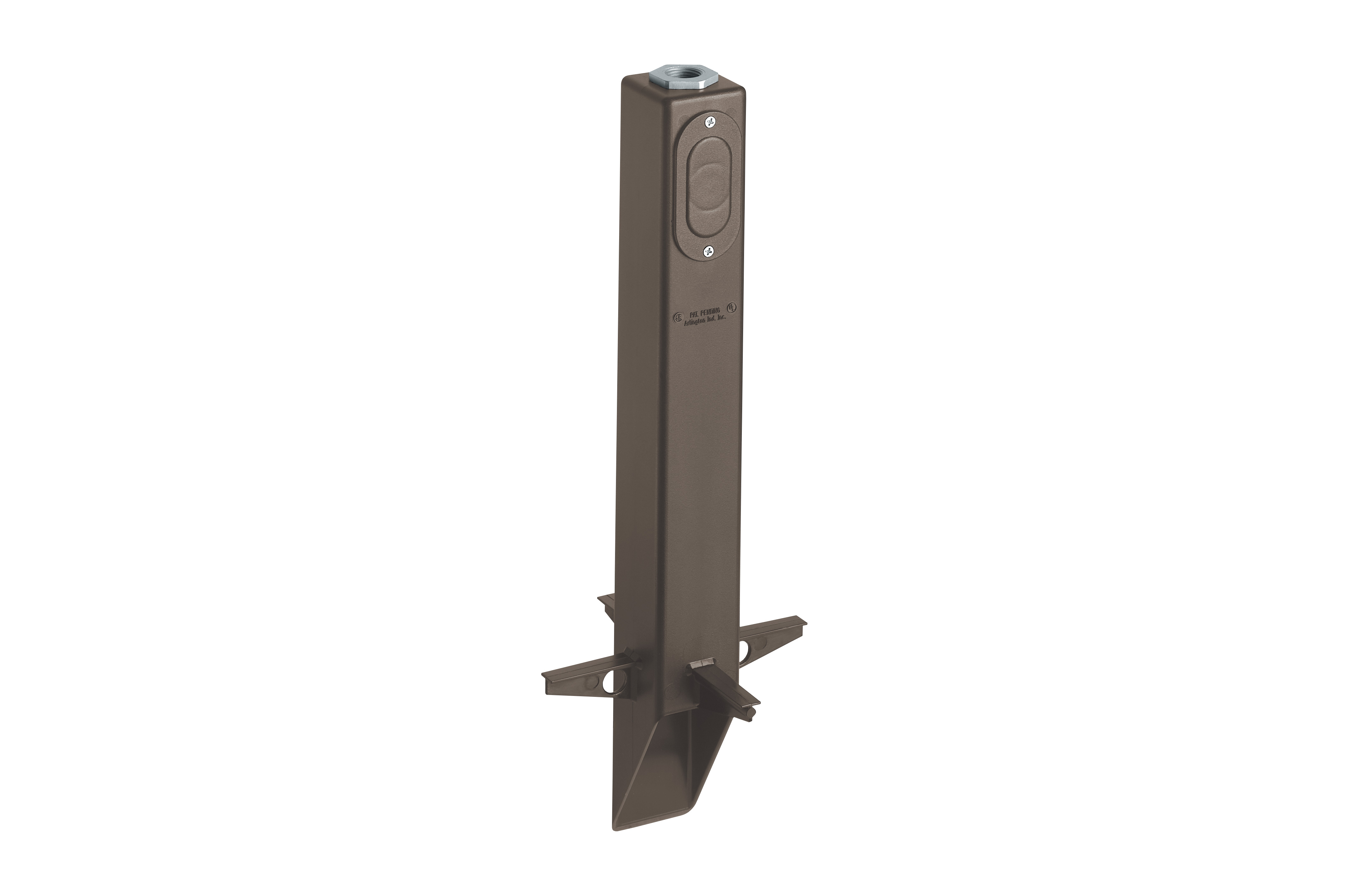

GPL19BR Product Information

19.5" Low Profile Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Basic Information

Part Number GPL19BR
Description Gard-N-Post. 19.5" support for outdoor light fixtures. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. one 1/2" Knockout to cover photocell installations. Color Brown. Color is permanent, no chipping.
UPC 018997770011
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing

Physical Information

Weight1.358 lbs/each
Height19.500"
Width2.250"
Color Bronze
Additional Color Options Black - GPL19B
Green - GPL19G
White - GPL19W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPL19BR Line Drawing
ApplicationInstallation of a 2 or 3-wire lighting fixture outdoors.
Knockout Size(s)(1) 1/2"

Comes With

(1)Grounding locknut
(1)Gard-N-Post
(1)Fixture mounting bushing
(1)Access panel gasket
(1)Access panel cover
(1)7" long ground wire
(2)#6-32 x 5/8" Long Screws
