garden post for outdoor lighting fixture

GPL19W Product Information

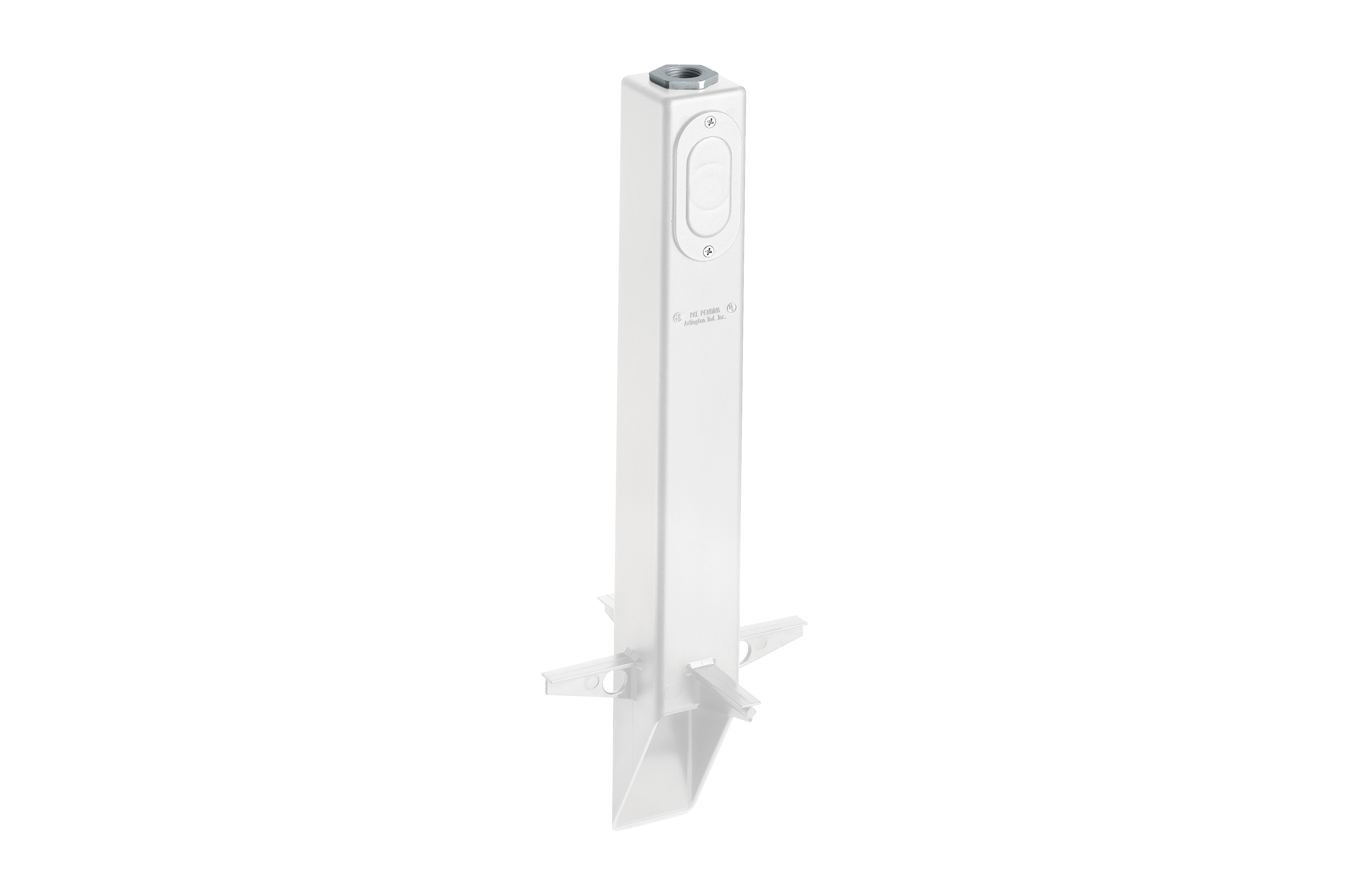

19.5" Low Profile Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Basic Information

Part Number GPL19W
Description For when you only need to install outdoor light fixtures, choose Arlington's low-profile Gard-N-Post. The 19.5" UV rated white plastic post can accommodate most outdoor fixtures with a 3/4" or 1/2" NPT. The base has built-in stabilizers for extra stability and also has an angled base for easy access to underground wiring. The access panel has a built-in knockout for installation of a photocell, and the color of the post will not chip off.
UPC 018997770035
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin

Physical Information

Weight1.358 lbs/each
Color White
Additional Color Options Black - GPL19B
Bronze - GPL19BR
Green - GPL19G
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPL19W Line Drawing
ApplicationInstallation of a 2 or 3-wire lighting fixture outdoors.
Knockout Size(s)(1) 1/2"
Trade Size19.5"

Comes With

(1)Grounding locknut
(1)Fixture mounting bushing
(1)Access panel gasket
(1)Access panel cover
(1)7" long ground wire
(2)#6-32 x 5/8" Long Screws
