Arlington

GPBK28B Product Information

28" Gard-N-Post™ Bollard Kit
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GPBK28B

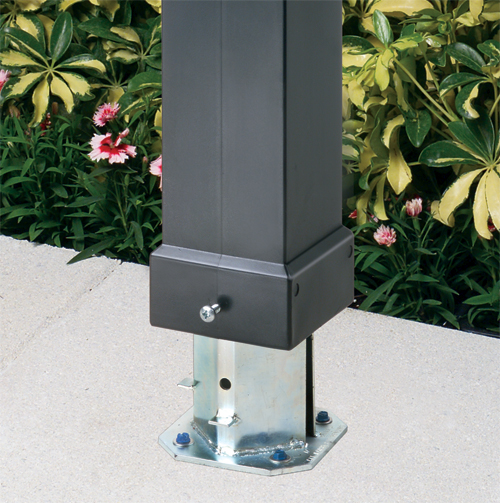

Description Gard-N-Post. 28" bollard kit only for devices. Openings on both sides of post for back to back power or power on one side and low voltage on the other. Metal support post attaches to surface. The non metallic Gard-N-Post slides over the support post. two 1/2" Knockouts. Color Black. Color is permanent, no chipping.
UPC 018997760906
Unit Packaging 1pc
Standard Packaging 1pc
Listing
Available w/ Grounding Clip Yes - Order Part Number GPBK28BGC

Physical Information

Weight12.150 lbs/each
Height29.000"
Width6.070"
Color Black
Cover Color Clear
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPBK28B Line Drawing
Recommended AnchorsConcrete: (4) 3/8 x 2-1/2 Tapcons
Cast-in-Place Concrete: (4) 3/8 Anchor Bolts
Wood Deck: (4) 3/8 Bolts with Nuts and Washers

Comes With

(1)Standard knock-out plate
(1)Metal support post
(1)Low-voltage separator box
(1)IN-AND-OUT Cover
(1)Gard-N-Post
(1)Decorative curb
(2)Blank plastic covers
(2)Blank cover gaskets
(2)#8 x 5/8" Long Screws
(4)#6 x 1/2" Long Screws
