garden post bollard kit

GPBK35B Product Information

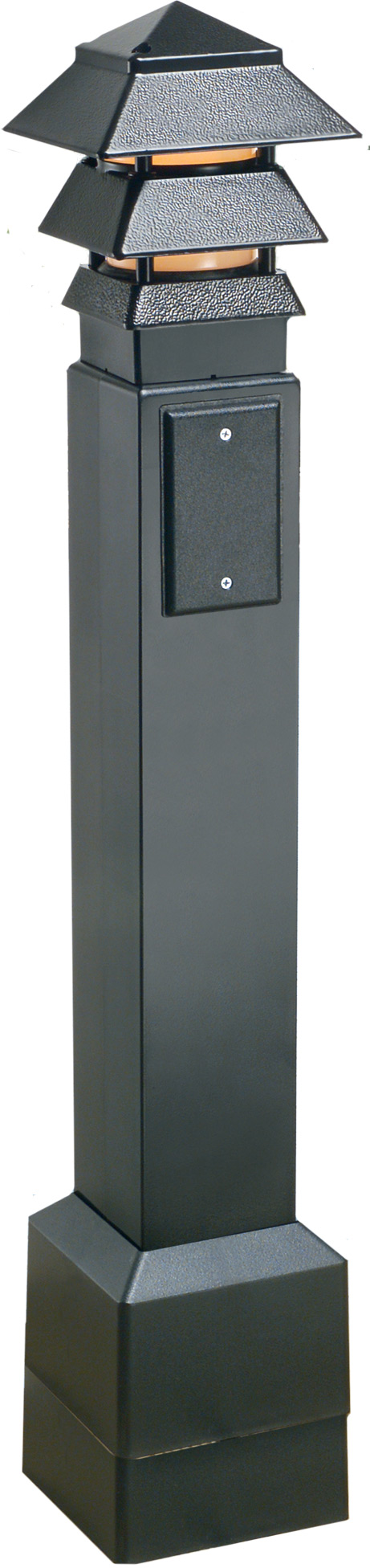

35" Gard-N-Post™ Bollard Kit
Specification SheetCatalog Page E-mail

Additional Images

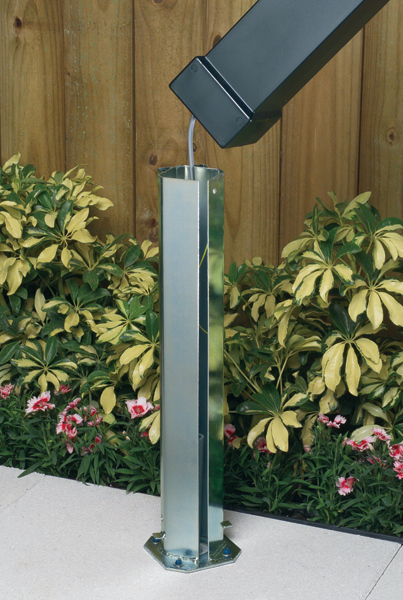

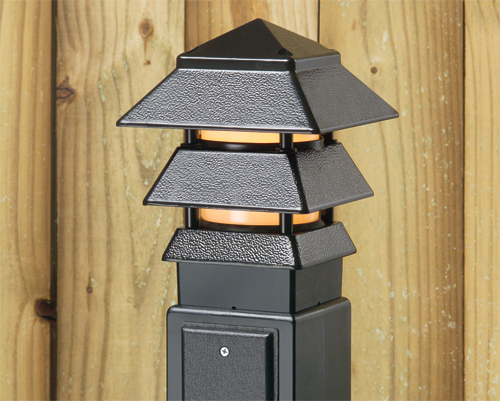

bollard garden post sliding over metal support post pagoda style lamp installed on garden post

Basic Information

Part Number GPBK35B
Description Gard-N-Post. 35" bollard kit comes with Pagoda style light fixture. Openings on both sides of post for back to back power or power on one side and low voltage on the other. Metal support post attaches to surface. The non metallic Gard-N-Post slides over the support post. two 1/2" Knockouts. Color Black. Color is permanent, no chipping.
UPC 018997770400
Unit Packaging 1pc
Standard Packaging 1pc
Listing
Available w/ Grounding Clip Yes - Order Part Number GPBK35BGC

Physical Information

Instruction Sheet GPBK35B Instruction Sheet
Weight16.530 lbs/each
Height35.000"
Width6.070"
Color Black
Cover Color Clear
Additional Color Options Bronze - GPBK35BR
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPBK35B Line Drawing
Recommended AnchorsConcrete: (4) 3/8 x 2-1/2 Tapcons
Cast-in-Place Concrete: (4) 3/8 Anchor Bolts
Wood Deck: (4) 3/8 Bolts with Nuts and Washers
Trade Size35"

Comes With

(1)Standard knock-out plate
(1)Pagoda light fixture
(1)Metal support post
(1)Low-voltage separator box
(1)Gard-N-Post
(1)Decorative spacer for light fixture
(1)Decorative curb
(2)Blank plastic covers
(2)Blank cover gaskets
(2)#8 x 5/8" Long Screws
(4)#6 x 1/2" Long Screws
