TVL508 Product InformationLow Profile TV Box™ for Shallow Wall Depths Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | TVL508 |
| Description | Low Profile non metallic TV BOX kit. For a flush to the wall installation as shallow as 3/4". For new or old construction. Fits also on 2x2, 2x3 and 2x4 studs. Box Only. |
| UPC | 018997523075 |
| Unit Packaging | 1pc |
| Standard Packaging | 4pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Instructional Video | TVL508 Instructional Video |
| Weight | 1.092 lbs/each |
| Height | 7.561" |
| Width | 10.210" |
| Color |  White |
| Material(s) | Plastic |
Technical Information
| Line Drawing | TVL508 Line Drawing |

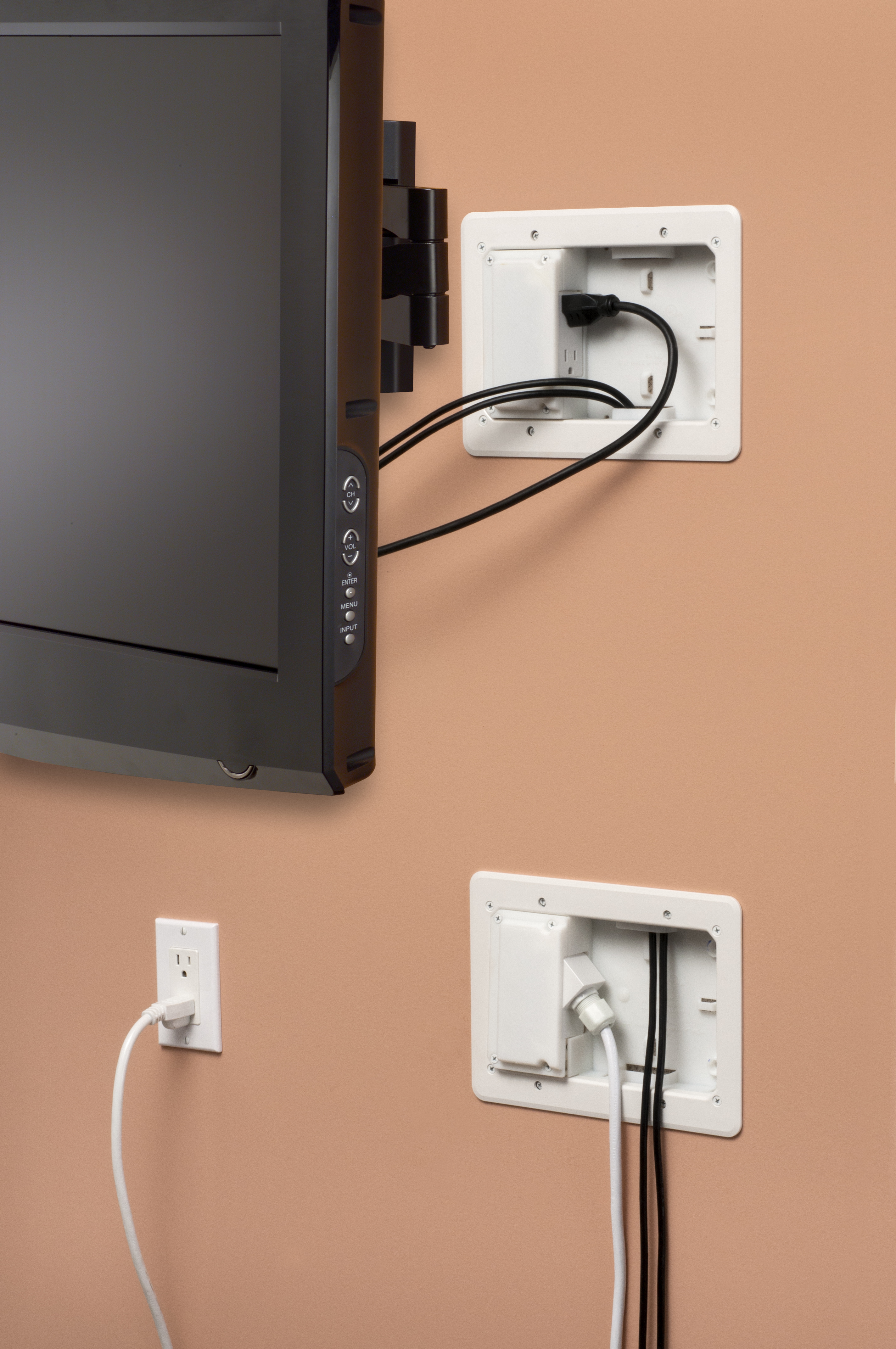

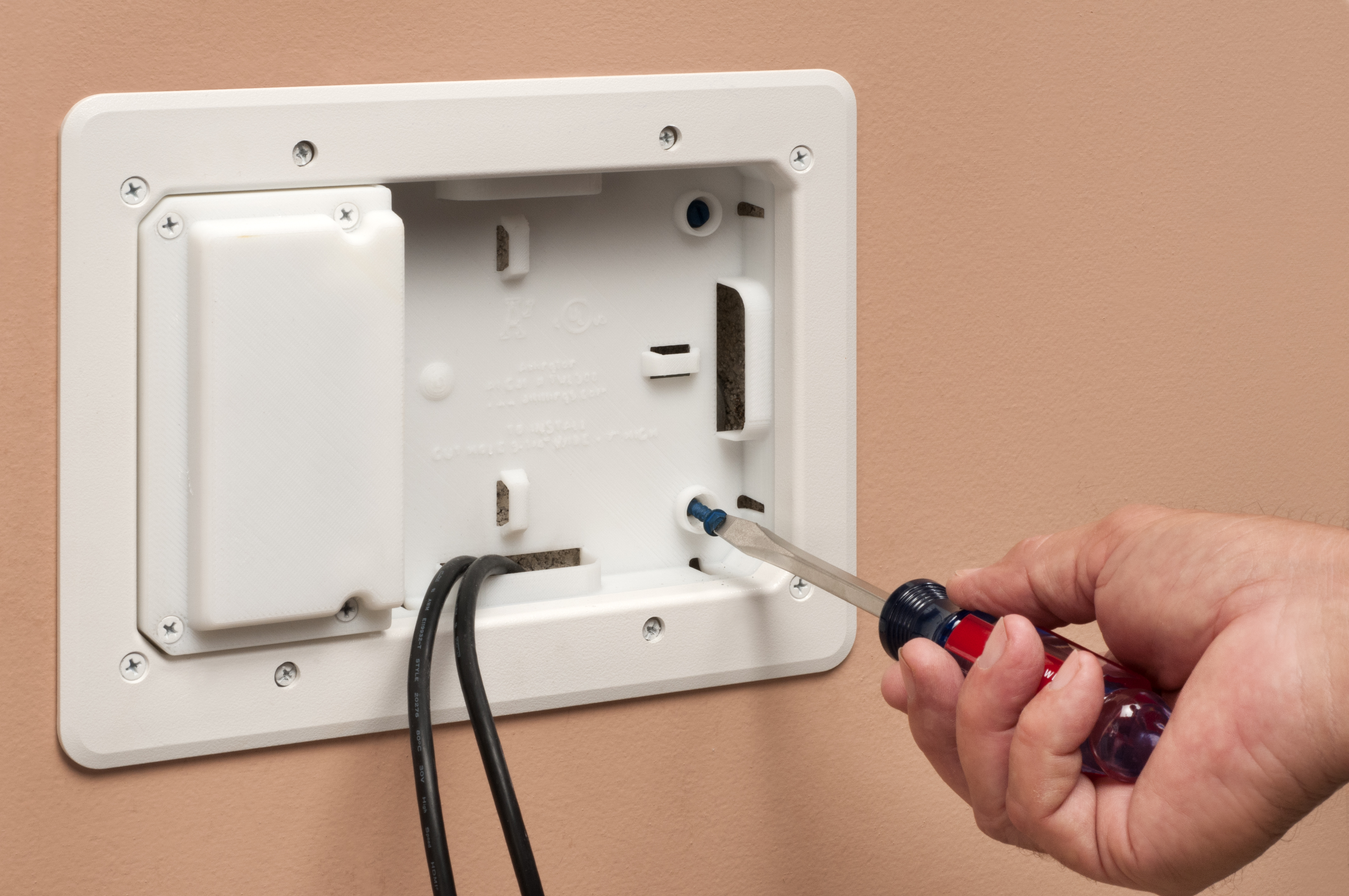

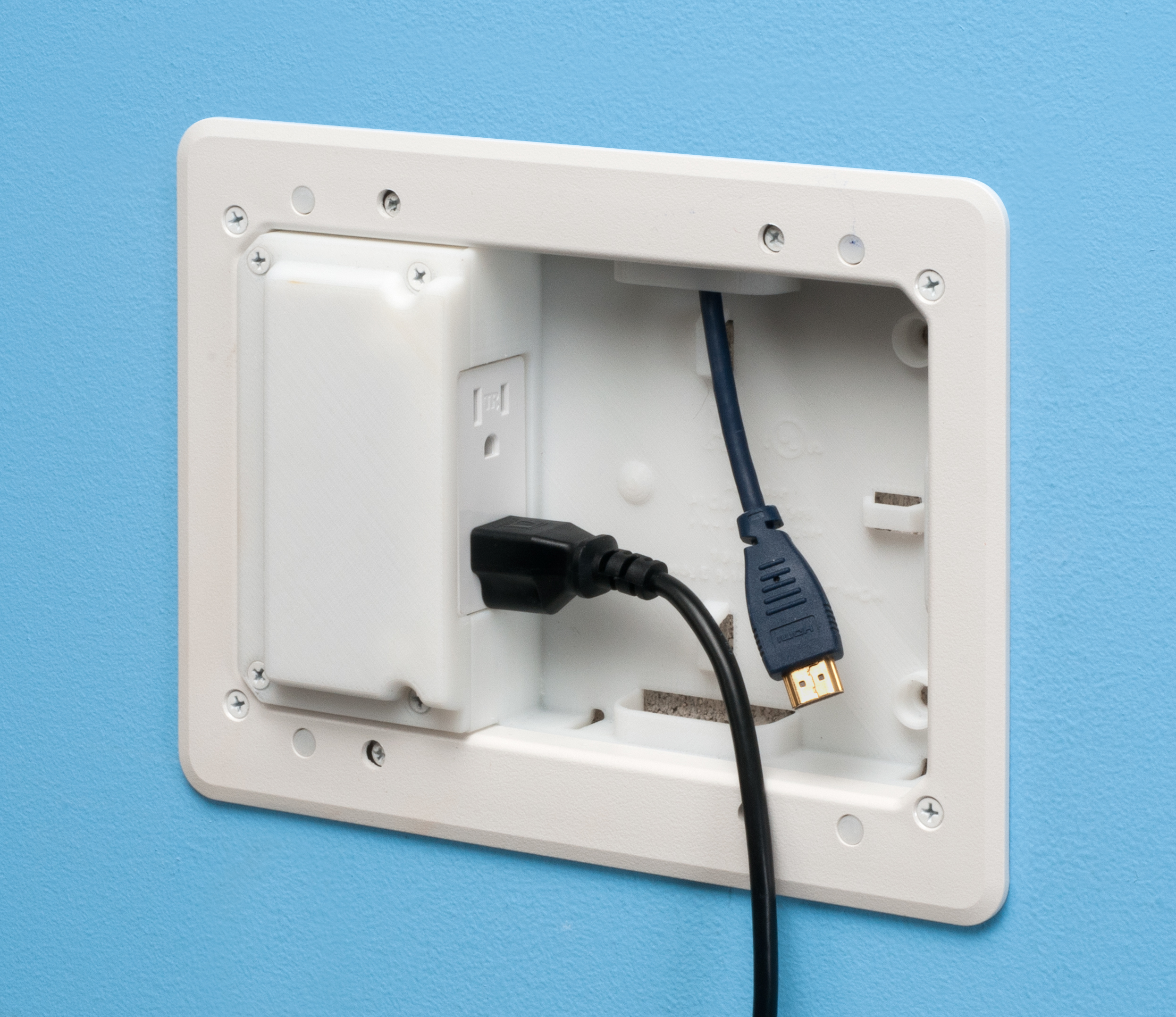

| Application | Installation of Flat Panel TV on 1/2" or 5/8" Drywall with Shallow Wall Depths |
| Box Depth | 1-1/4" |
| Stud Size | 2 x 2, 2 x 3, 2 x 4, or Larger |
| Trade Size | 5" x 8" Box |
Comes With

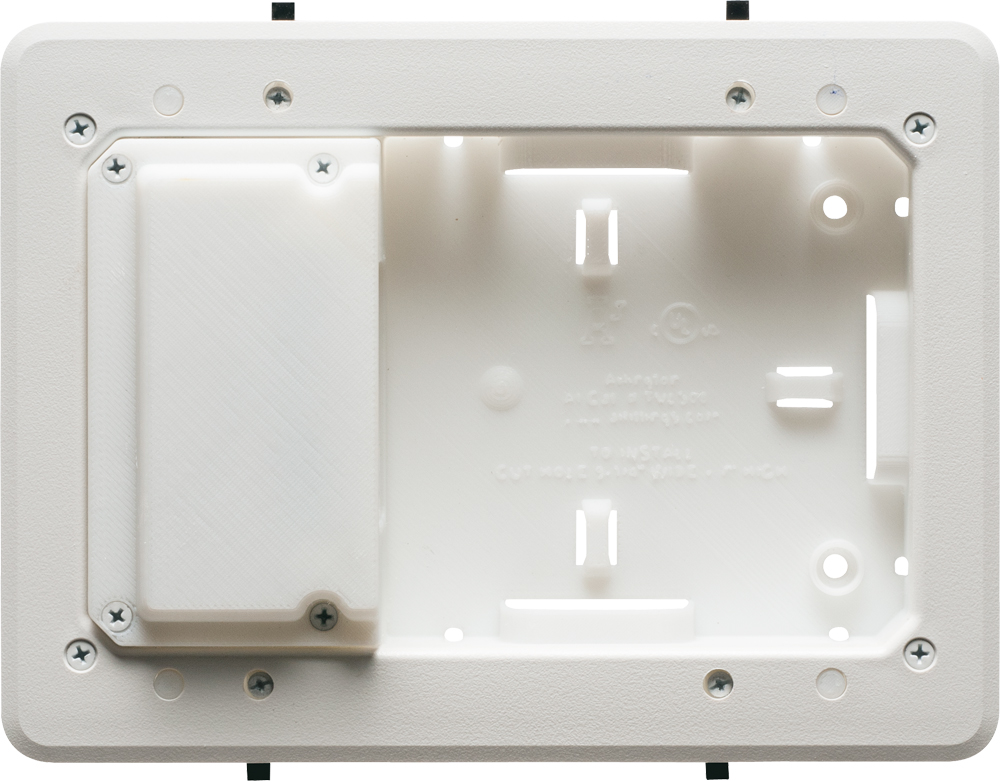

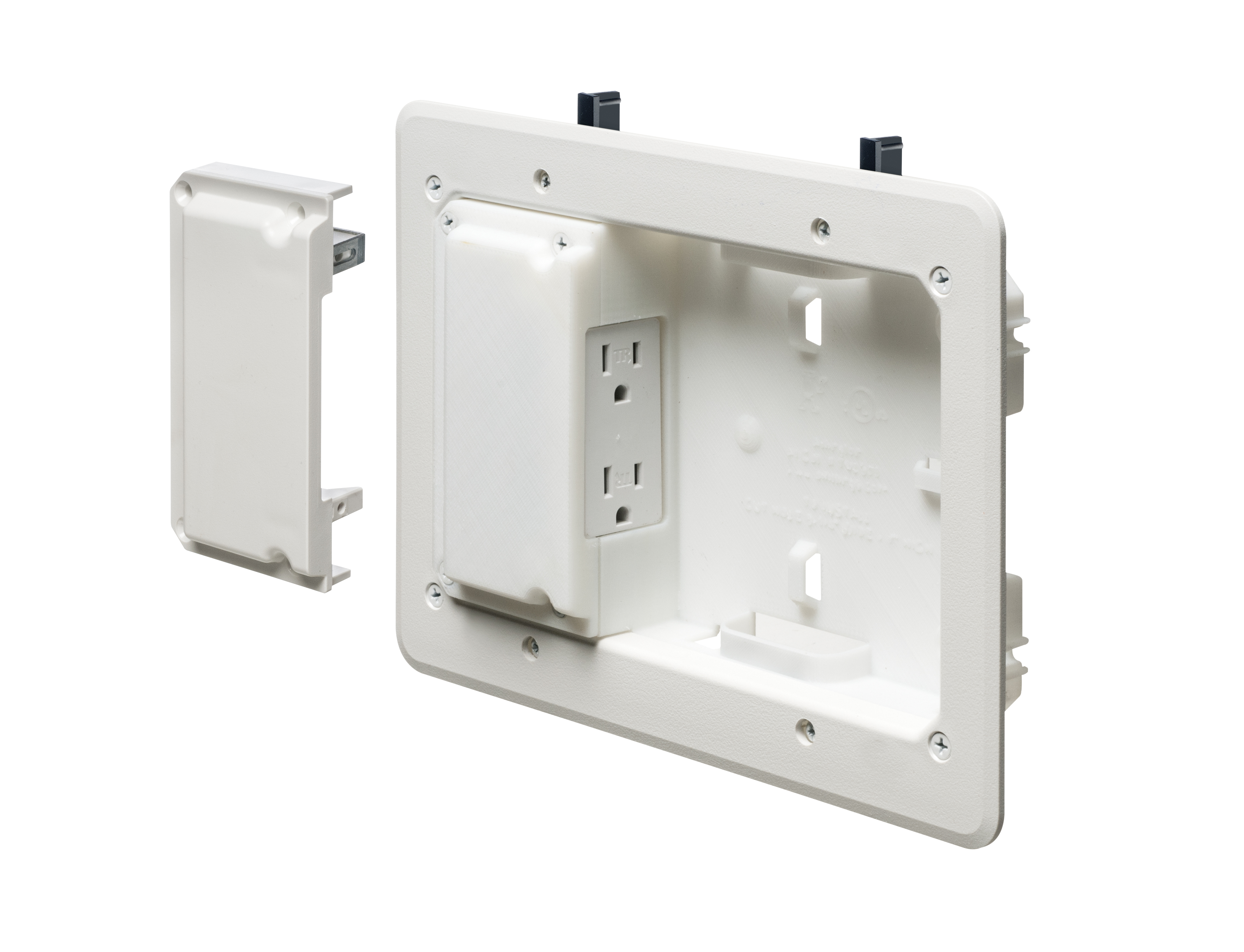

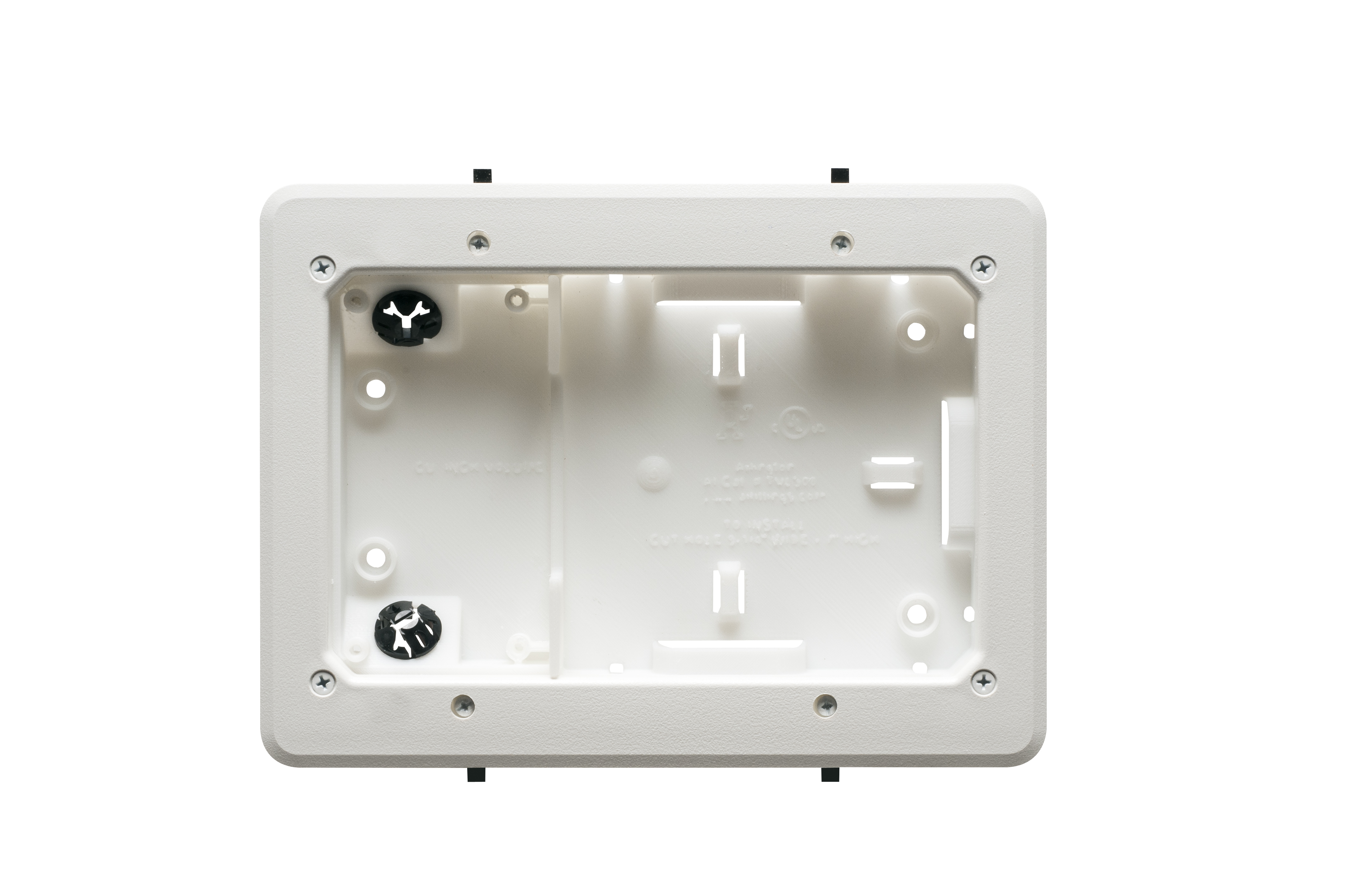

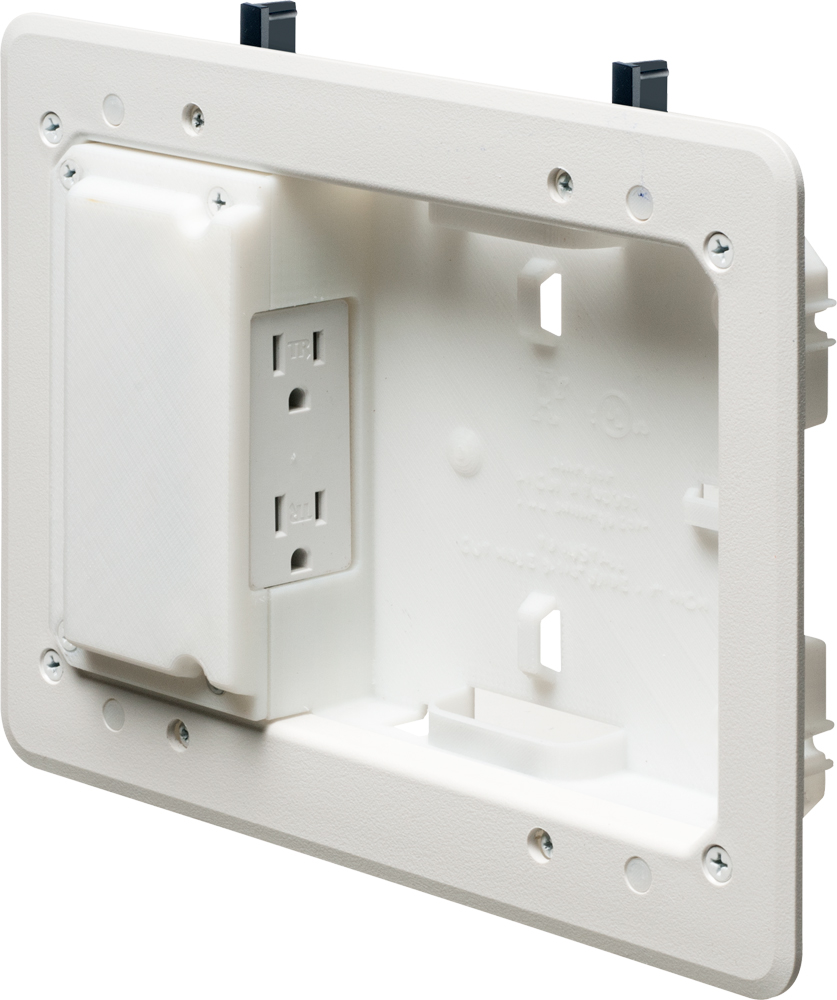

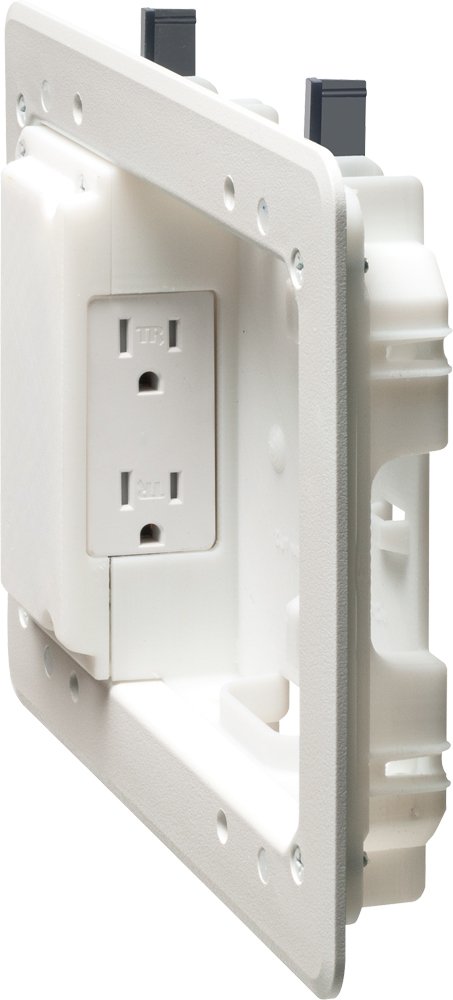

| (1) | TVL508 Low-Profile TV Box™ |
| (1) | Trim Plate |

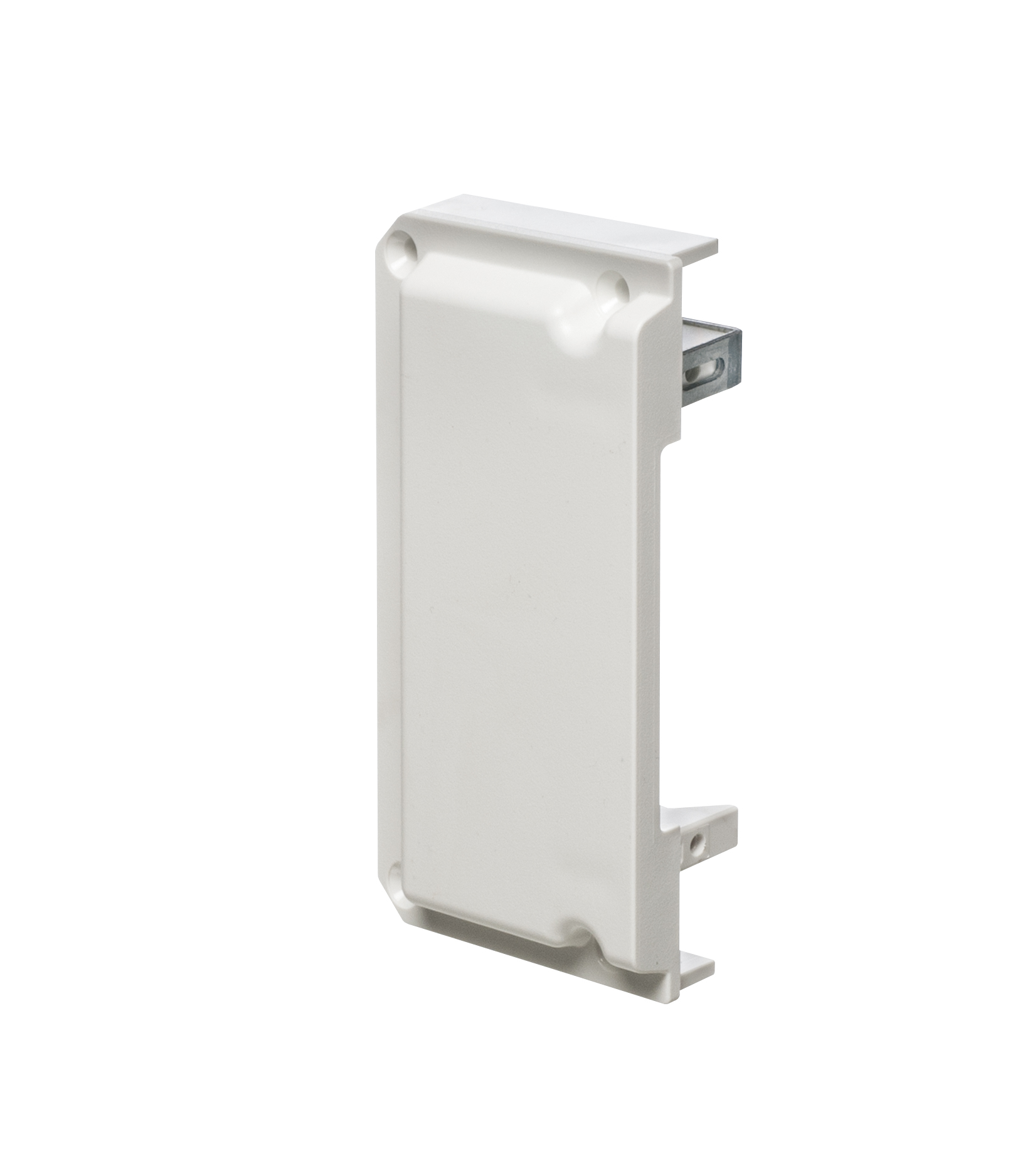

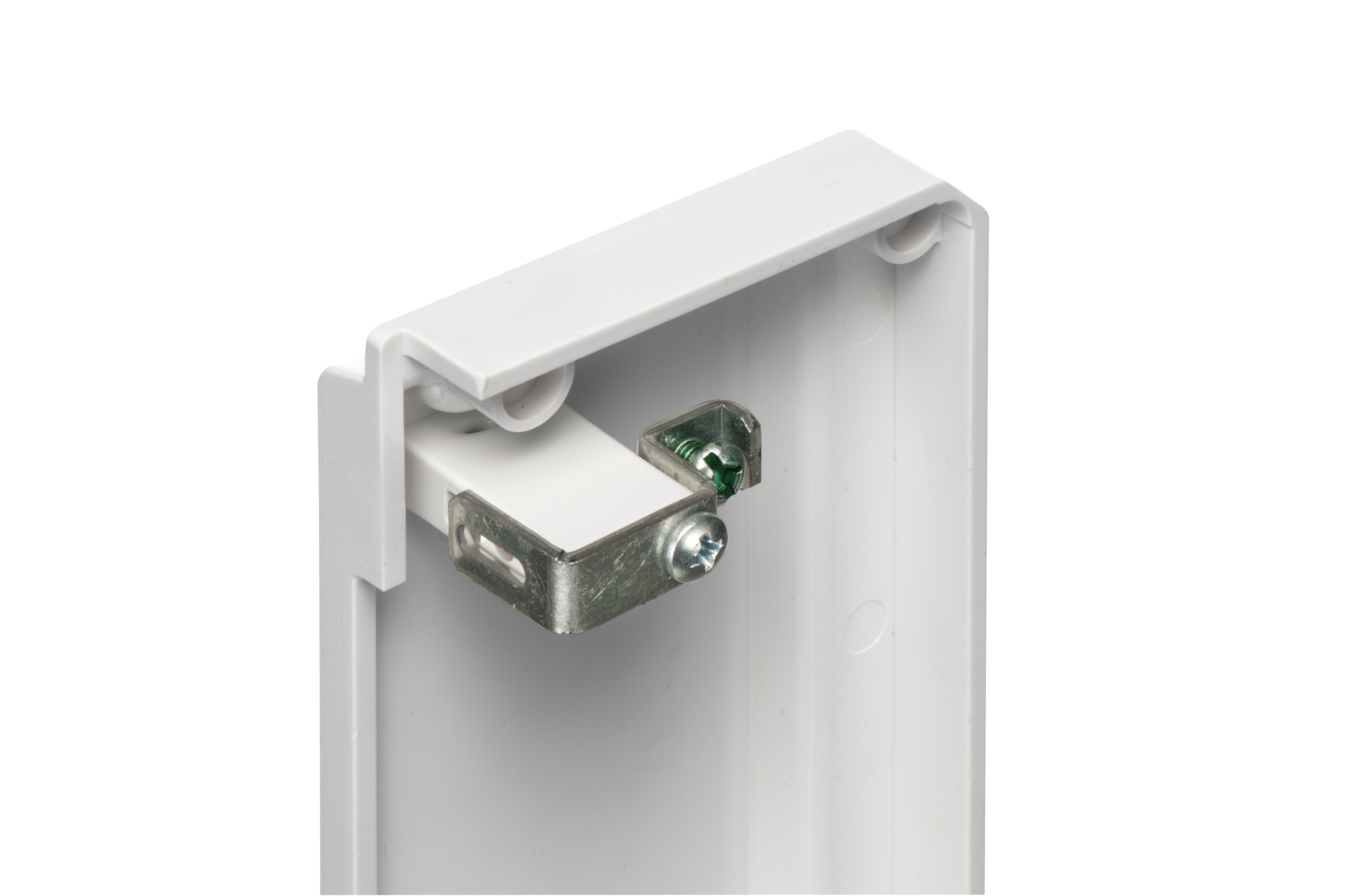

| (1) | Receptacle Mounting Bracket |
| (1) | NM Snap-In Blank |
| (1) | NM Cable Connector |
| (1) | Decorator-Style Duplex Receptacle |
| (8) | #8-32 x 5/8" Long Screws |
| (2) | #6-32 x 5/8" Long Screws |
| (2) | #6 x 1-5/8" Long Wood Screws |
