quick latch pipe hanger

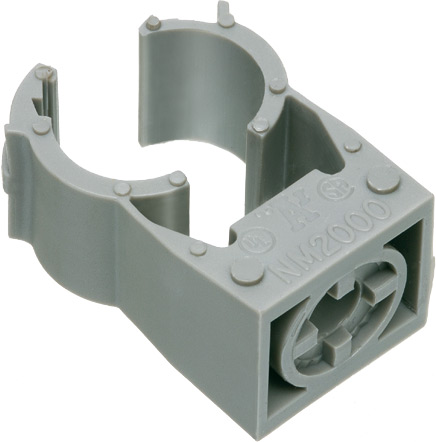

NM2060 Product Information

QuickLATCH™ Pipe Hangers
Specification SheetCatalog Page E-mail

Additional Images

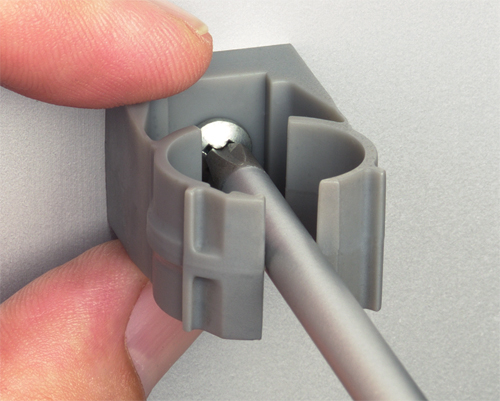

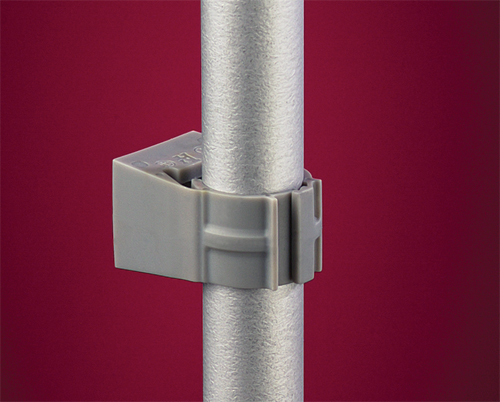

person mounting quick latch pipe hanger to wall with screw quick latch pipe hanger securing vertical pipe

Basic Information

Part Number NM2060
Description Strut Clip for conduit on Arlington's non metallic QuickLatch™ pipe hangers. For 2-1/2" Rigid, 2-1/2" EMT, 2-1/2" Liquid Tight, 2-1/2" Flex.
UPC 018997545213
Unit Packaging 50pcs
Standard Packaging 50pcs
Country of Origin
Listing

Physical Information

Instructional Video NM2060 Instructional Video
Weight0.179 lbs/each
Height5.095"
Width3.460"
Color Gray
Material(s)UV-Rated Plastic

Technical Information

Line Drawing NM2060 Line Drawing
EMT Size2-1/2"
Flex Cable Size2-1/2"
Liquid-Tight Cable Size2-1/2"
Rigid Cable Size2-1/2"
Trade Size2-1/2"

Comes With

(1)QuickLATCH™ Pipe Hanger

Suggested Products

strut clip

NM1000
