one-box vapor fixture box

F426F Product Information

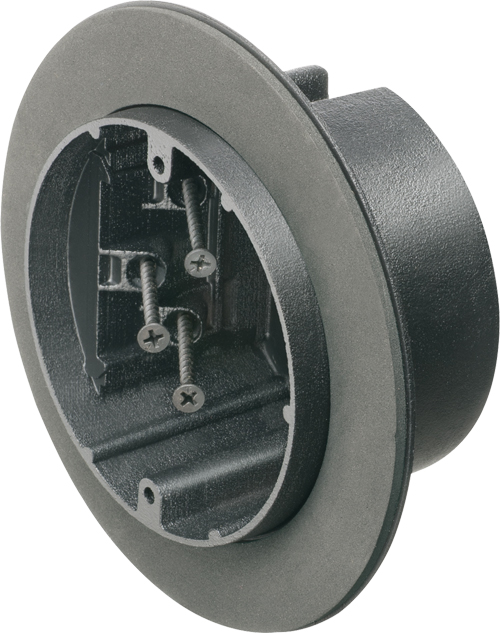

Screw-On Non-Metallic Vapor Box for Fixtures (Round)
Specification SheetCatalog Page E-mail

Additional Images

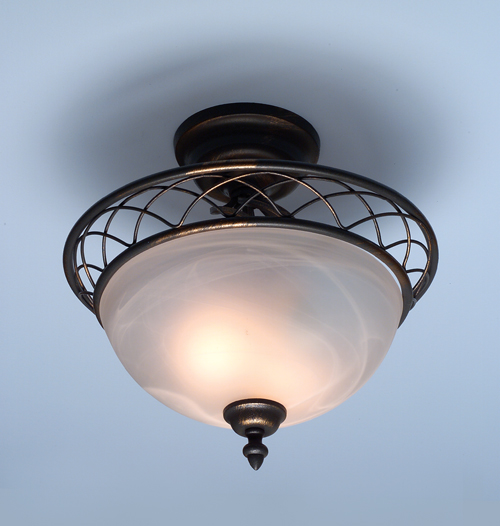

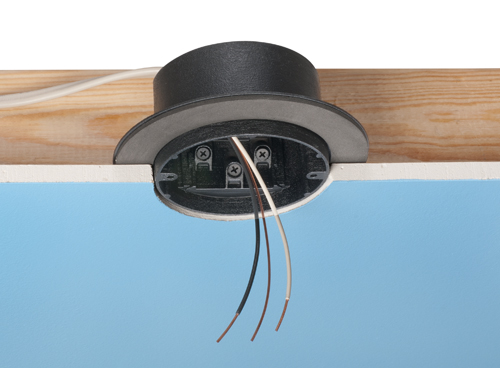

one-box mounted to stud light fixture mounted to one-box

Basic Information

Part Number F426F
Description One-Box™ vapor box. Includes additional gasket for knockout. Flange provides protective barrier against air infiltration. 28 cu. in.
UPC 018997069030
Unit Packaging 20pcs
Standard Packaging 20pcs
Country of Origin
Available w/ Grounding Clip Yes - Order Part Number F426FGC

Physical Information

Weight0.316 lbs/each
Color Black

Technical Information

Line Drawing F426F Line Drawing
Cubic Inches28.0
Trade Size28.0 Cubic inches
UsageProtects Against Air Infiltration

Comes With

(1)NM95 Cable Connector
(2)NM94 Cable Connectors
(3)Gaskets for knockouts
(1)Flange Gasket
(1)Box with flange
(3)#6 x 1-5/8" Long Screws
