adjustable ceiling box

FBR423 Product Information

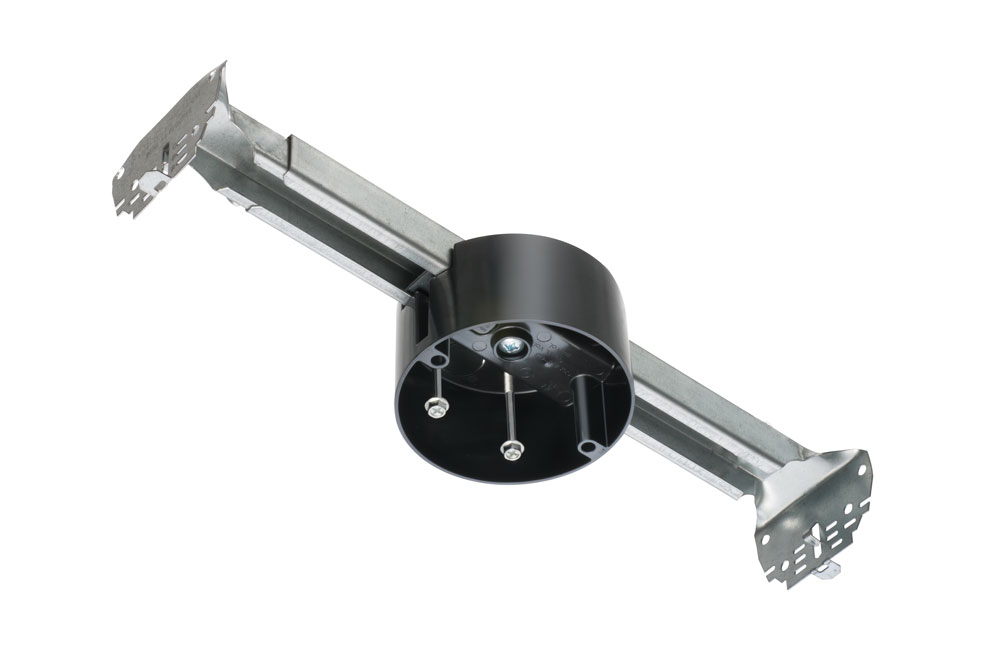

Steel Adjustable Bracket with Plastic Box
Specification SheetCatalog Page E-mail

Additional Images

adjustable ceiling box mounted between two joists

Basic Information

Part Number FBR423
Description Steel adjustable bracket with plastic box for fan and fixture mounting. 2 hour fire rated. 23.0 cu. in. 70lb fan rated at 24" on center, 90lb fixture rated at 16" on center, 70lb fan rated 16" on center, 150lb fixture rated at 16" on center.
UPC 018997523105
Unit Packaging 1pc
Standard Packaging 10pcs
Country of Origin

Physical Information

Instructional Video FBR423 Instructional Video
Instruction Sheet FBR423 Instruction Sheet
Weight1.460 lbs/each
Color Black
Material(s)Plastic, Steel

Technical Information

Line Drawing FBR423 Line Drawing
Ceiling ThicknessAdjustable up to 1-1/4"
Cubic Inches23.0
Load RatingUL Rated at 24" o.c.: 70lb Fan; 90lb Fixture
UL Rated at 16" o.c.: 70lb Fan; 150lb Fixture
CSA Rated: 50lb Fan; 50lb Fixture
Trade Size23.0 cu. in.

Comes With

(1)NM94 Cable Connector
(1)Mud Cover
(1)Adjustable steel bracket
(4)#12 x 1" Long Screws
(2)#10 x 2-1/2" Long Screws
