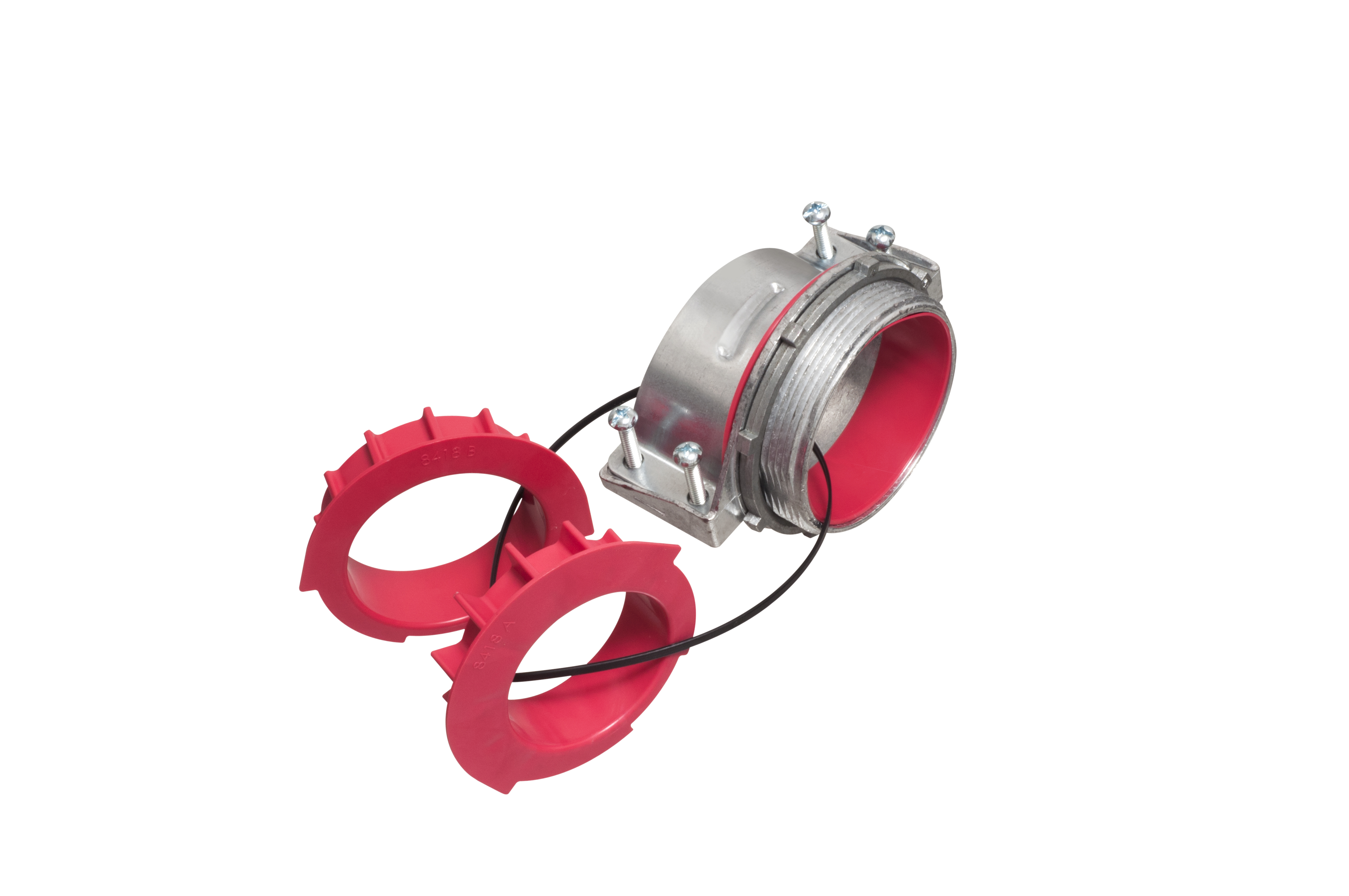

MC cable connector with three bushings

8418 Product Information

Connector for Larger MC Cable
Specification SheetCatalog Page E-mail

Additional Images

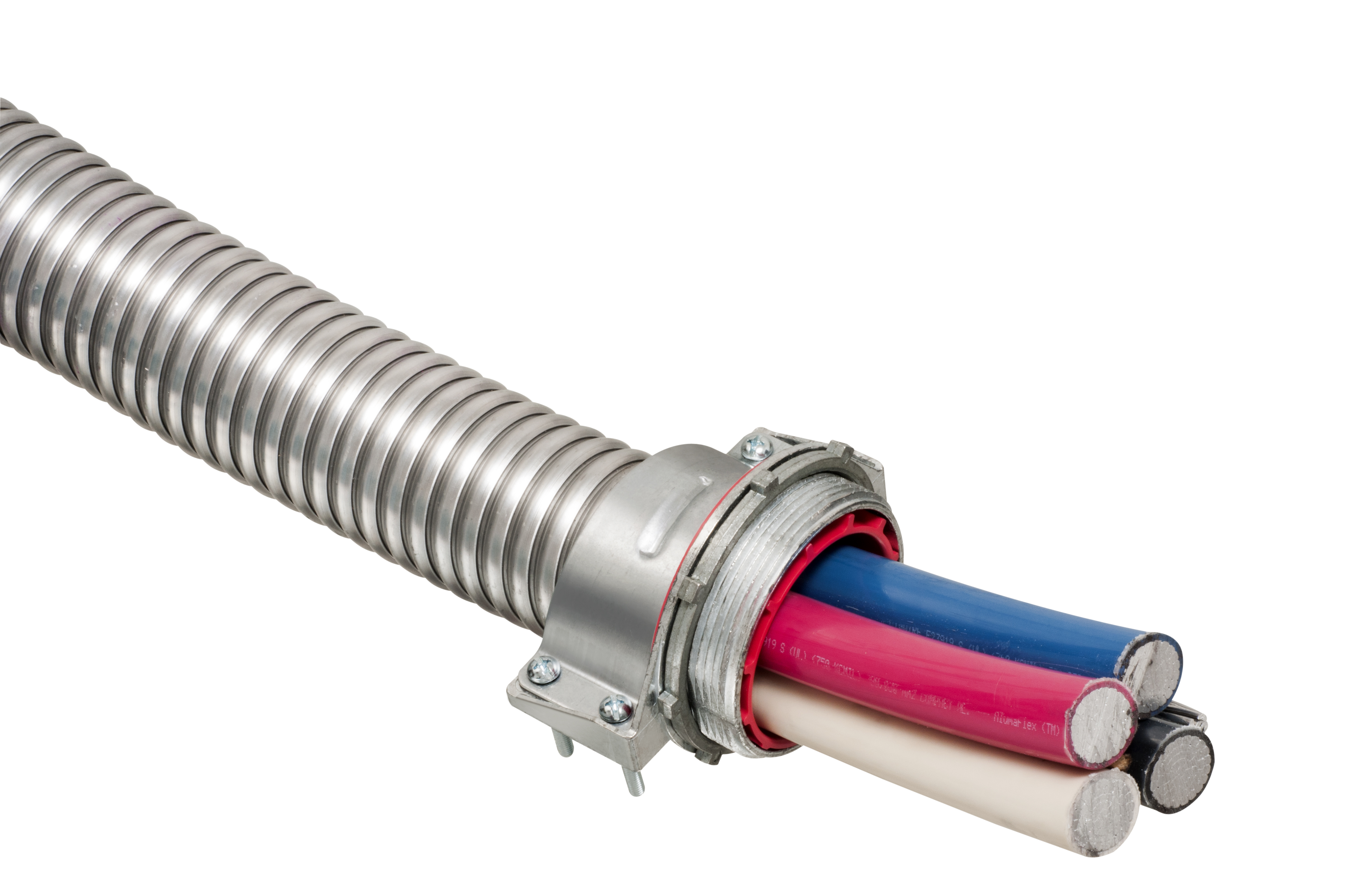

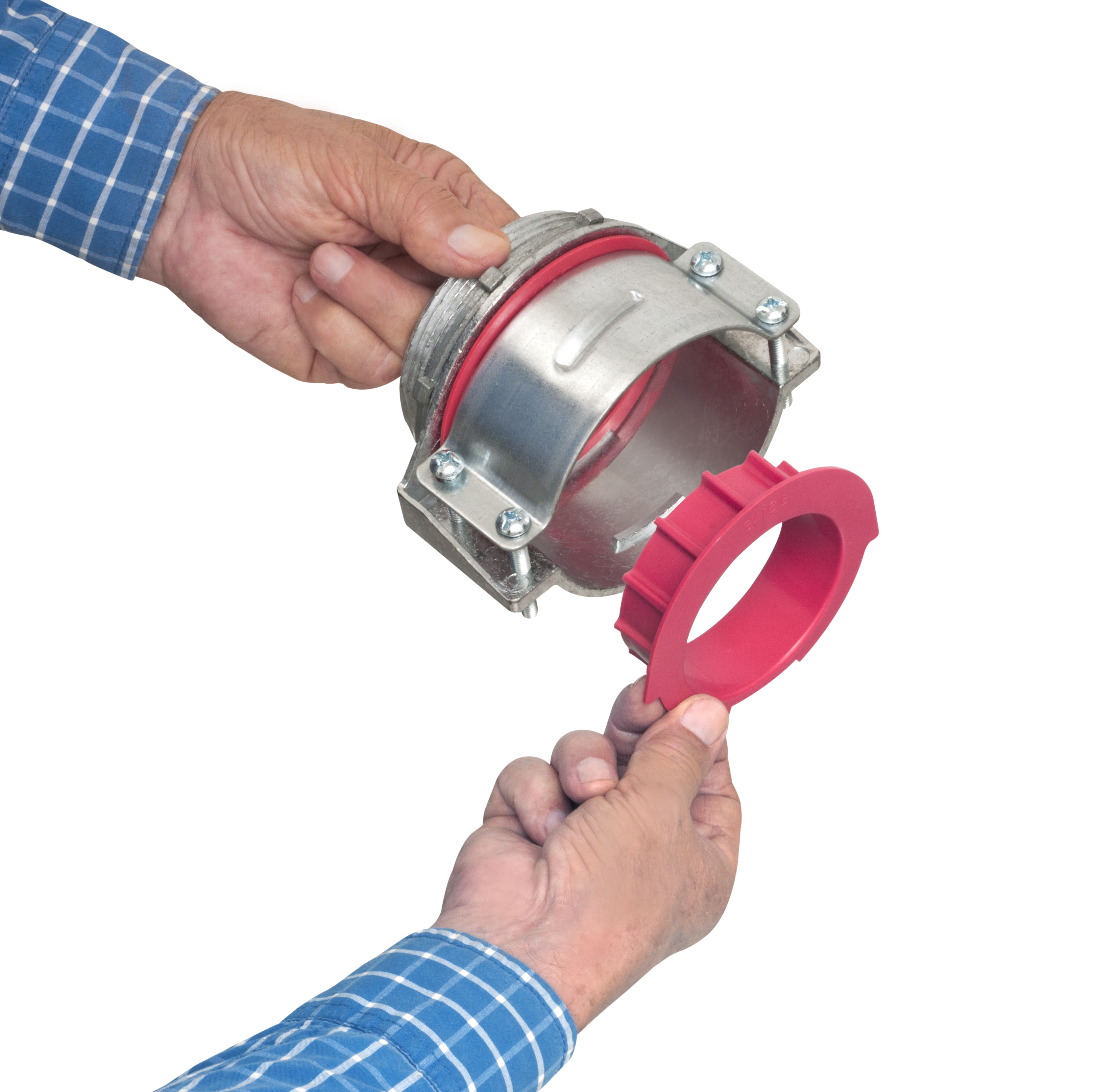

MC cable connector mounted on MC cable person installing bushing into connector

Basic Information

Part Number 8418
Description For steel and aluminum cable, Zinc die-cast MC feeder cable connector with a steel strap. Including an end stop that comes with additional end stop bushings for a wider range of cables. Secures into a 3-1/2" knockout with a steel locknut. Concrete tight when taped.
UPC 01899742910
Unit Packaging 5pcs
Standard Packaging 5pcs
Country of Origin
Listing

Physical Information

Instructional Video 8418 Instructional Video
Instruction Sheet 8418 Instruction Sheet

Technical Information

Line Drawing 8418 Line Drawing
Knockout Size(s)3-1/2"
Trade Size3-1/2"
