floor box kit for new concrete

FLBC101NL Product Information

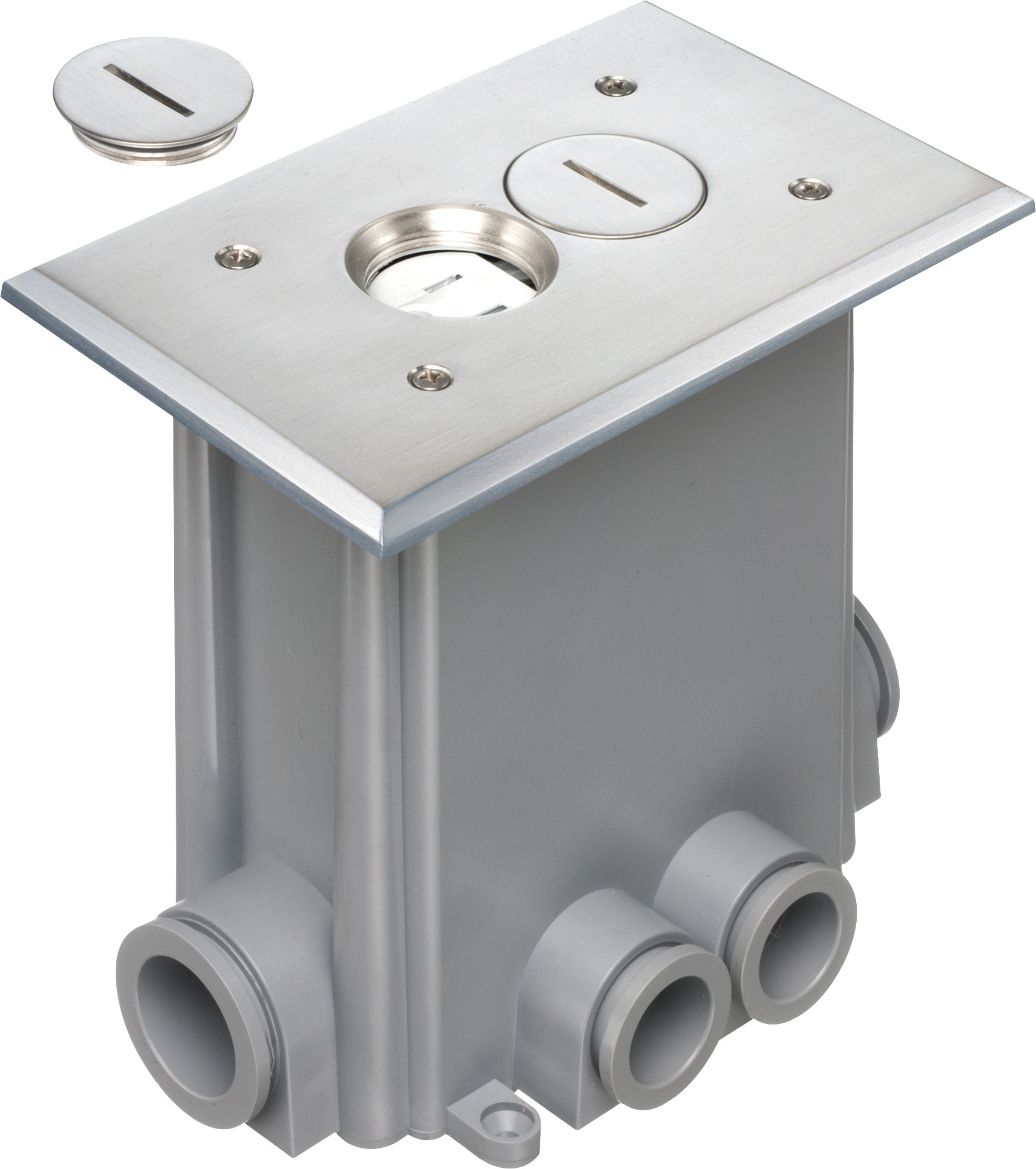

Concrete Floor Boxes with Metallic Covers
Specification SheetCatalog Page E-mail

Additional Images

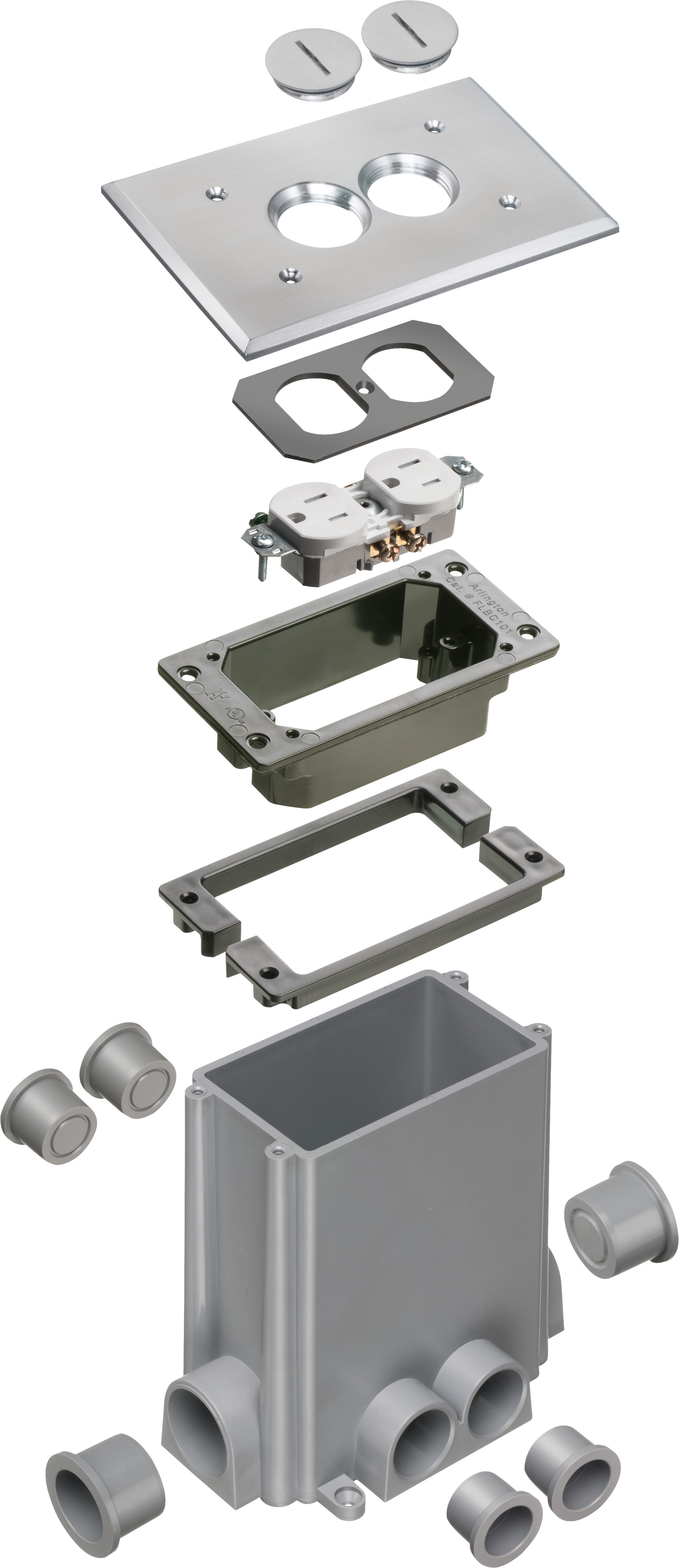

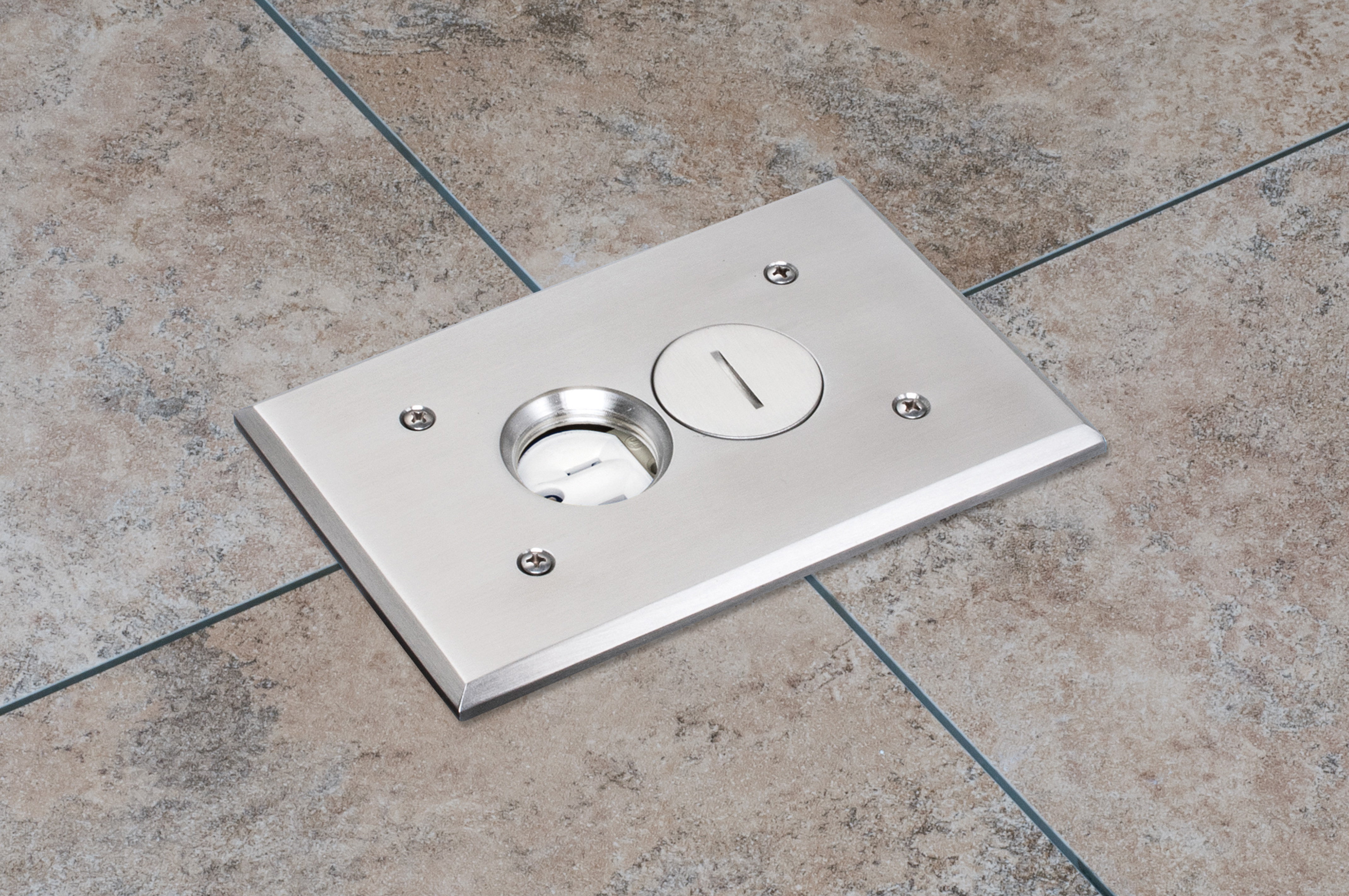

exploded view of components included in floor box kit floorbox in tiled floor

Basic Information

Part Number FLBC101NL
Description Metallic concrete floor box with non metallic covers for new concrete pours. Nickel with Threaded plugs. Includes Box, Mud Cover, Four 3-1/4 plugs, two 1" plugs, 1/8" spacer 1/4" spacer. one 1/2" spacer, one 3/4" spacer, Mounting bracket, Duplex receptacle, Gasketed cover plate.
UPC 018997524522
Unit Packaging 1pc
Standard Packaging 1pc
Listing
Available w/ Grounding Clip Yes - Order Part Number FLBC101NLGC

Physical Information

Instructional Video FLBC101NL Instructional Video
Instruction Sheet FLBC101NL Instruction Sheet
Weight2.850 lbs/each
Height6.500"
Width4.125"
ColorNickel-Plated (Cover)
Material(s)Plastic (Box)

Technical Information

Line Drawing FLBC101NL Line Drawing
Submittal Drawing FLBC101NL Submittal Drawing
StyleConcrete floor box with metallic cover and threaded plugs
Trade Size1-Gang
UsageNew concrete pours

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)Mud Cover
(1)Mounting bracket with gasket
(1)Cover plate with gasket
(1)Concrete Box
(1)Back Plate
(1)3/4" Spacer Set
(4)3/4" Plugs
(1)1/8" Spacer Set
(1)1/4" Spacer Set
(1)1/2" Spacer Set
(2)1" Plugs
(4)#8 x 5/8" Long Sheet Metal Screws
(4)#8 x 1-1/4" Long Sheet Metal Screws
(5)#6-32 x 1/2" Long Screws
