adjustable floor box

FLBAR101LA Product Information

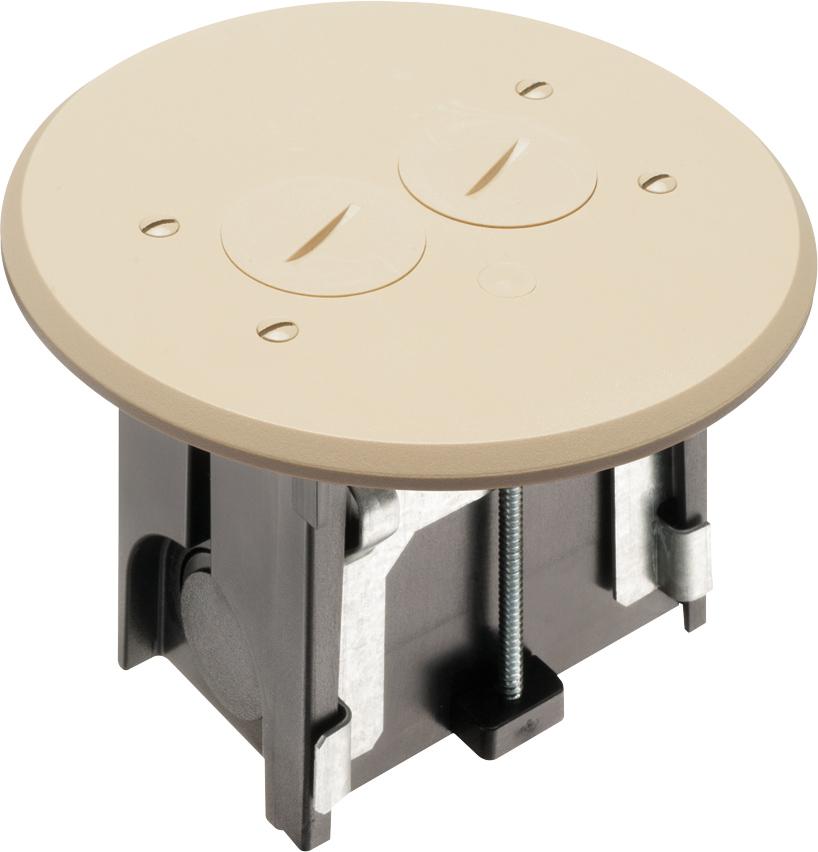

Adjustable Non-Metallic Floor Box for New Floors
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number FLBAR101LA
Description Round Non Metallic adjustable floor box. Light Almond with threaded plugs. Includes tamper resistant duplex receptacle, cover plate with gasket and Arlington NM94 connector and Arlington NM900 knockout plug.
UPC 018997043498
Unit Packaging 1pc
Standard Packaging 4pcs
Country of Origin
Listing

Physical Information

Instructional Video FLBAR101LA Instructional Video
Instruction Sheet FLBAR101LA Instruction Sheet
Weight0.702 lbs/each
Height5.800"
Width5.800"
Color Light Almond (Cover)
Material(s)Plastic

Technical Information

Line Drawing FLBAR101LA Line Drawing
Cubic Inches18.3
StyleAdjustable floor box with round cover
Trade Size1-Gang
UsageNew floor construction

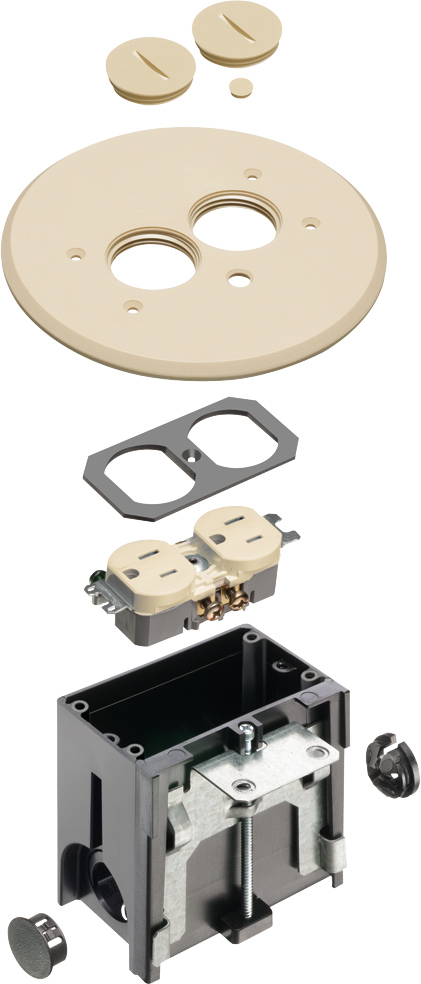

Comes With

(2)Threaded Plugs
(1)Tamper-Resistant Duplex Receptacle
(1)NM94 Cable Connector
(1)NM900 Snap-In Blank
(1)Metal Clip
(1)Cover
(1)Back Plate
(1)Adjustment Screw Cap
(1)Adjustable Floor Box
(5)#6-32 x 1/2" Long Screws
(4)#6 Drywall Screws
