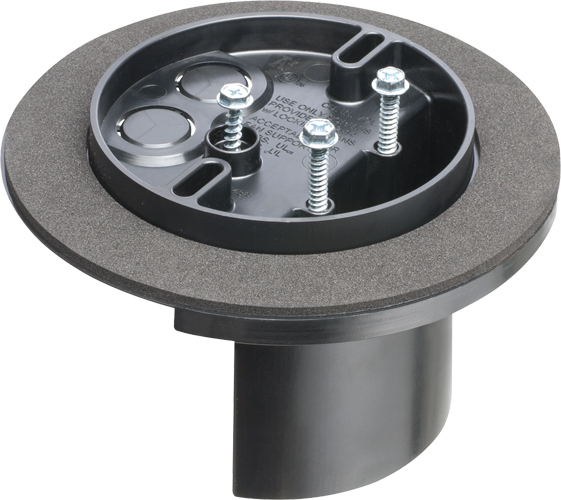

L-shaped fan and fixture mounting box

FB442F Product Information

Joist Mount Screw-On L-Shaped Vapor Box for Fans and Fixtures (Single Drywall)
Specification SheetCatalog Page E-mail

Basic Information

Part Number FB442F
Description L-shaped fan and fixture vapor box. 70lb fan, 200lb fixture rated for 1/2" or 5/8" drywall. 13.4 cu. in. 2 Hour Fire Rating. Flange forms a protective barrier against air infiltration.
UPC 018997762207
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin
Listing

Physical Information

Weight0.360 lbs/each
Height6.250"
Width6.250"
Color Black
Material(s)Plastic

Technical Information

Line Drawing FB442F Line Drawing
Cubic Inches15.5
DescriptionJoist Mount Single Drywall
Load RatingUL Rated: 70lb Fan; 200lb Fixture
CSA Rated: 50lb Fan; 50lb Fixture
Trade Size15.5 cu. in.
UsageProtects Against Air Infiltration

Comes With

(3)NM94 Cable Connectors
(1)Mud Cover
(3)Gaskets for knockouts
(1)Flange Gasket
(1)Box with flange
(2)#12 x 2" Long Screws
(1)#10 x 1" Long Screw
