FB442FD Product Information

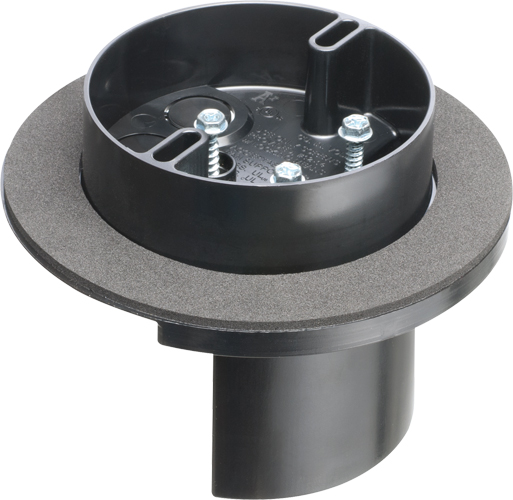

Joist Mount Screw-On L-Shaped Vapor Box for Fans and Fixtures (Double Drywall)
Specification SheetCatalog Page E-mail

Basic Information

Part Number FB442FD
Description L-shaped fan and fixture vapor box. 70lb fan, 200lb fixture rated for 1/2" or 5/8" drywall. 25.0 cu. 2 Hour Fire Rating. Flange forms a protective barrier against air infiltration.
UPC 018997762214
Unit Packaging 25pcs
Standard Packaging 25pcs
Country of Origin

Physical Information

Weight0.389 lbs/each
Color Black

Technical Information

Line Drawing FB442FD Line Drawing
Description/ Cu. In.Joist Mount Double Drywall/ 25.0
Load RatingUL rated: 70 lb fan; 200 lb fixture;
CSA rated: 50 lb fan/fixture
Trade Size25.0 cu. in.
UsageProtects Against Air Infiltration

Comes With

(3)NM94 Cable Connectors
(1)Mud Cover
(3)Gaskets for knockouts
(1)Flange Gasket
(1)Box with flange
(2)#12 x 2-1/2" Long Screws
(1)#10 x 1" Long Screw
