FB443F Product InformationJoist Mount Screw-On L-Shaped Vapor Box for Fans and Fixtures (Single Drywall) Specification SheetCatalog Page E-mail |
Additional Images
Basic Information
| Part Number | FB443F |

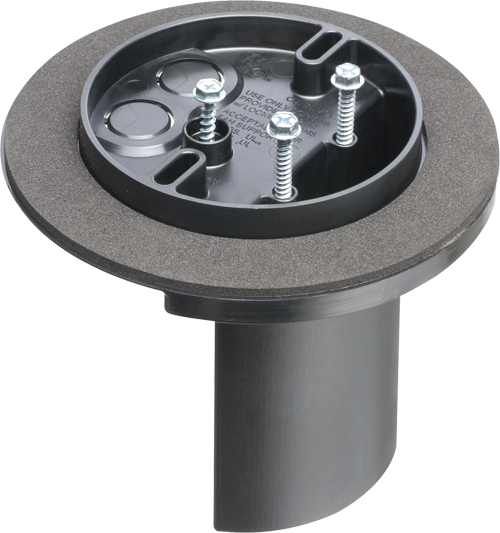

| Description | L-shaped fan and fixture vapor box. 70lb fan, 200lb fixture rated for 1/2" or 5/8" drywall. 18.3 cu. in. 2 Hour Fire Rating. Flange forms a protective barrier against air infiltration. |
| UPC | 018997762221 |
| Unit Packaging | 25pcs |
| Standard Packaging | 25pcs |
| Country of Origin |  |
| Listing |
|
Physical Information
| Weight | 0.380 lbs/each |
| Height | 6.250" |
| Width | 6.250" |
| Color |  Black |
| Material(s) | Plastic |
Technical Information
| Line Drawing | FB443F Line Drawing |
| Cubic Inches | 18.8 |
| Description | Fan or Fixture Single Drywall |
| Load Rating | UL Rated: 70lb Fan; 200lb Fixture CSA Rated: 50lb Fan; 50lb Fixture |
| Trade Size | 18.8 cu. in. |
| Usage | Protects Against Air Infiltration |
Comes With
| (3) | NM94 Cable Connectors |
| (1) | Mud Cover |
| (3) | Gaskets for knockouts |
| (1) | Flange Gasket |
| (1) | Box with flange |
| (2) | #12 x 2" Long Screws |
| (1) | #10 x 1" Long Screw |
