steel fixture box kit for suspended ceilings

FS427SCL Product Information

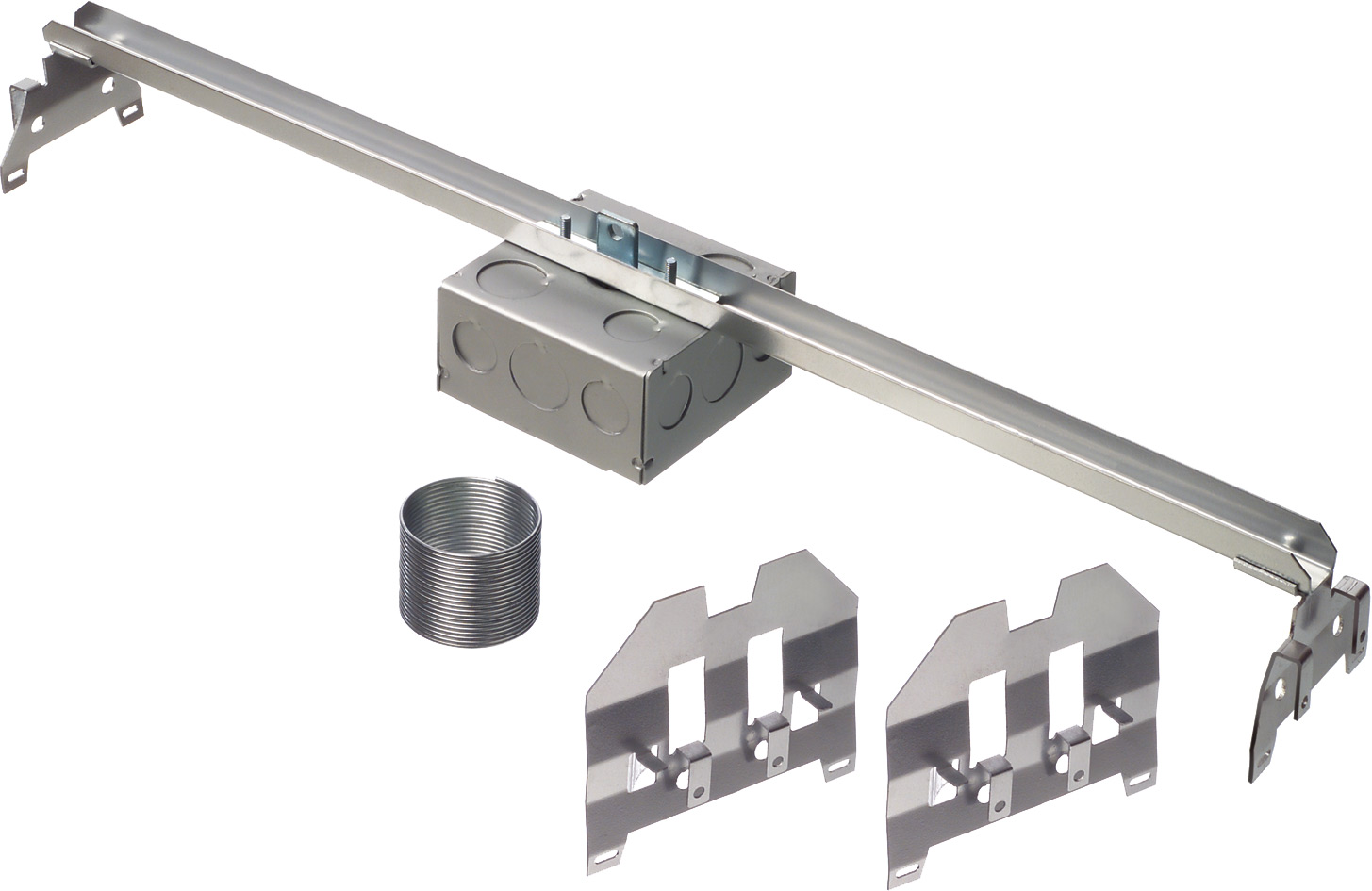

Steel Fixture Box Kit for Suspended Ceilings
Specification SheetCatalog Page E-mail

Basic Information

Part Number FS427SCL
Description Steel fixtured box kit for suspended ceilings. With adjustable mounting bar. Preset for 24 in. Grid. Supports up to 50lb fixtures. 2-1/8 inch box depth, 30 cu. in. 4 in. square box.
UPC 018997125378
Unit Packaging 1pc
Standard Packaging 10pcs

Physical Information

Instruction Sheet FS427SCL Instruction Sheet
Weight2.450 lbs/each
Color Silver
Material(s)Plated Steel

Technical Information

Line Drawing FS427SCL Line Drawing
Cubic Inches30.0
Load RatingUL Rated: 50lb Fixture
CSA Rated: 50lb Fixture
Style2-1/8" Box Depth
Trade Size30.0 cu. in.
UsageSuspended Ceilings

Comes With

(1)Steel bracket
(2)Bracket extensions
(1)12' long support wire
(2)#10-32 x 3/4" Long Screws
