Arlington
post or deck mount for outdoor light fixtures, GFCI devices, or low voltage devices

GPD9BR Product Information

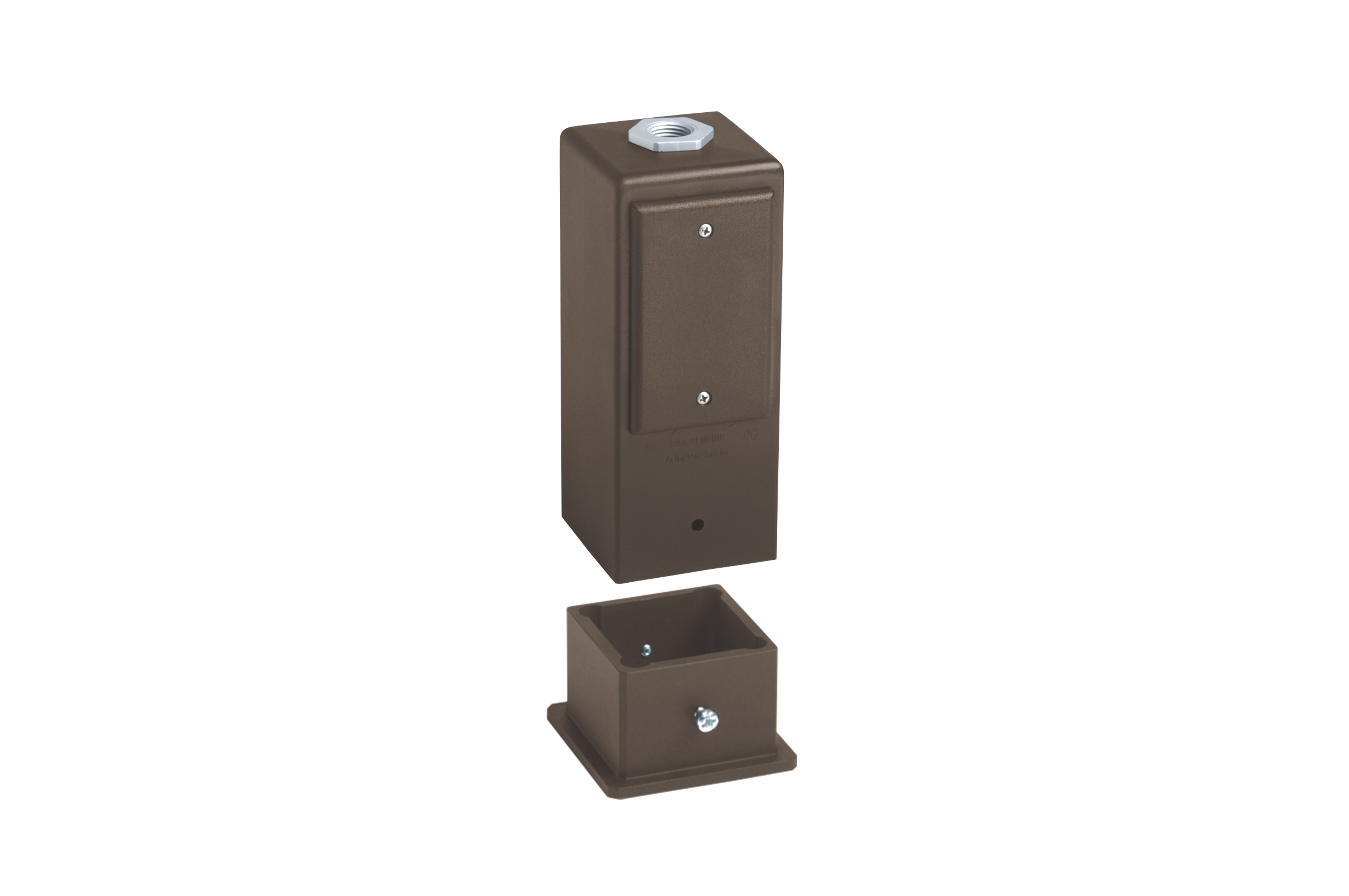

9" Post or Deck Mount Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Additional Images

garden post mounted on wooden post garden post with lamp mounted to dock overlooking lake

Basic Information

Part Number GPD9BR
Description Gard-N-Post. 9" Post/ Deck Mount support for outdoor light fixtures and or a GFCI wiring device. two 1/2" knockouts. two piece design. Base mounts directly to deck or post. Post mounts to base with set screws. Metal Grounding bushing assembly included. Color Brown. Color Permanent, No chipping.
UPC 018997761620
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number GPD9BRGC

Physical Information

Instruction Sheet GPD9BR Instruction Sheet
Weight1.836 lbs/each
Height9.000"
Width3.375"
Color Bronze
Additional Color Options Black - GPD9B
Green - GPD9G
White - GPD9W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GPD9BR Line Drawing
ApplicationMount an outdoor light fixture or GFCI wiring device on a 4x4 post or dock.
Knockout Size(s)(2) 1/2"
Trade Size9"

Comes With

(1)Removable knock-out plate
(1)Plastic top plug
(1)Plain locknut
(1)Grounding locknut
(1)Gard-N-Post Base
(1)Gard-N-Post
(1)Fixture mounting bushing
(1)Blank plastic cover
(1)Blank cover gasket
(1)7" long ground wire
(2)#8 x 5/8" Long Screws
(2)#6-32 x 5/8" Long Screws
(2)#14 x 1/2" Long Screws
(4)#10 x 1-1/2" Long Screws
