GP19BR Product Information

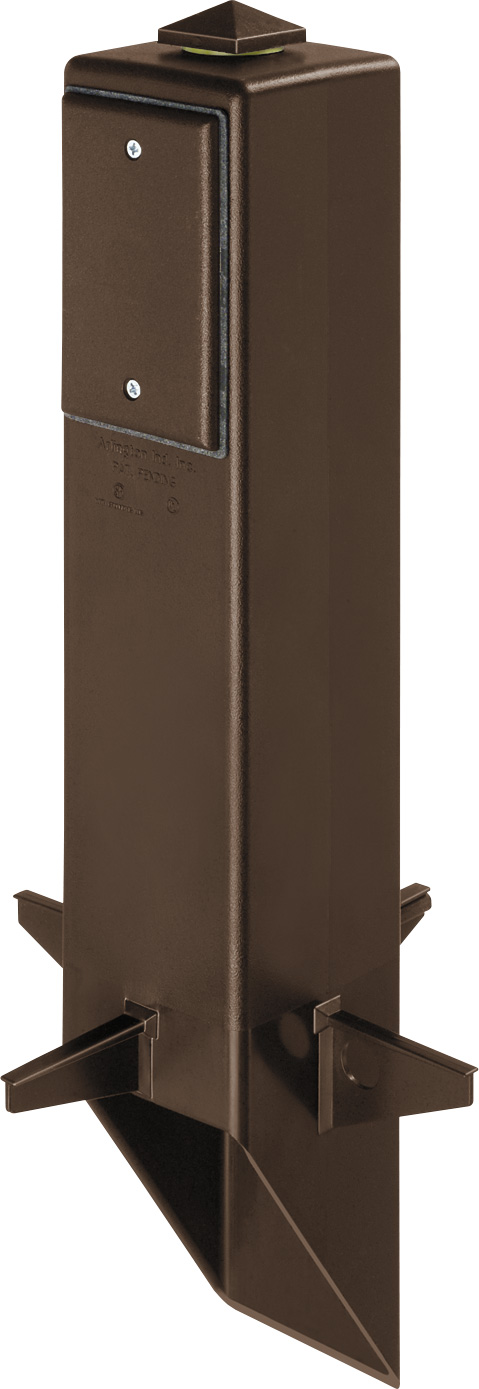

19.5" Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GP19BR
Description Gard-N-Post. 19.5" support for outdoor light fixtures or GFCI devices outdoors. Openings on both sides of post for back to back power or power on one side and low voltage on the other. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. Two 1/2" Knockouts. Color Brown. Color is permanent, no chipping.
UPC 018997770875
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number GP19BRGC

Physical Information

Instructional Video GP19BR Instructional Video
Instruction Sheet GP19BR Instruction Sheet
Weight2.926 lbs/each
Height19.470"
Width3.361"
Color Bronze
Additional Color Options Black - GP19B
Green - GP19G
White - GP19W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GP19BR Line Drawing
ApplicationInstallation of a lighting fixture, GFCI device, or low voltage device outdoors
Knockout Size(s)(2) 1/2"

Comes With

(1)Standard knock-out plate
(1)Plastic top plug
(1)Plain locknut
(1)Low-voltage separator box
(1)Low-voltage knock-out plate
(1)Grounding locknut
(1)Gard-N-Post
(1)Fixture mounting bushing
(2)Blank plastic cover
(2)Blank cover gasket
(1)7" long ground wire
(2)#8 x 5/8" Long Screws
(4)#6 x 1/2" Long Screws
