Arlington

GP19W Product Information

19.5" Support for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Additional Images

Basic Information

Part Number GP19W

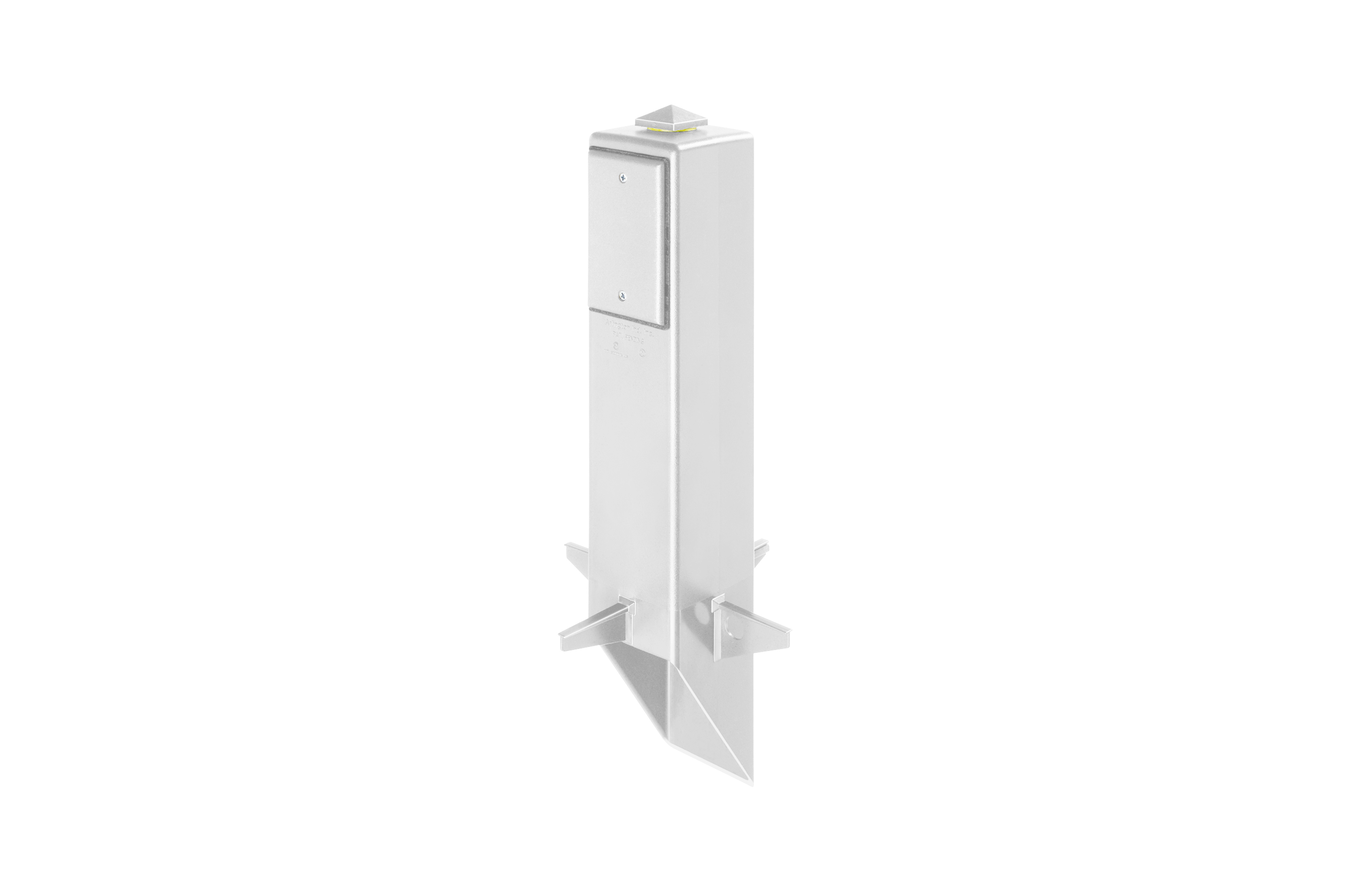

Description Gard-N-Post. 19.5" support for outdoor light fixtures or GFCI devices outdoors. Openings on both sides of post for back to back power or power on one side and low voltage on the other. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. Two 1/2" Knockouts. Color White. Color is permanent, no chipping.
UPC 018997770899
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number GP19WGC

Physical Information

Instructional Video GP19W Instructional Video
Instruction Sheet GP19W Instruction Sheet
Weight2.926 lbs/each
Height19.470"
Width3.361"
Color White
Additional Color Options Black - GP19B
Bronze - GP19BR
Green - GP19G
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GP19W Line Drawing
ApplicationInstallation of a lighting fixture, GFCI device, or low voltage device outdoors
Knockout Size(s)(2) 1/2"

Comes With

(1)Standard knock-out plate
(1)Plastic top plug
(1)Plain locknut
(1)Low-voltage separator box
(1)Low-voltage knock-out plate
(1)Grounding locknut
(1)Gard-N-Post
(1)Fixture mounting bushing
(2)Blank plastic cover
(2)Blank cover gasket
(1)7" long ground wire
(2)#8 x 5/8" Long Screws
(4)#6 x 1/2" Long Screws
