GP26BR Product Information

26" Supports for Outdoor Light Fixtures
Specification SheetCatalog Page E-mail

Basic Information

Part Number GP26BR

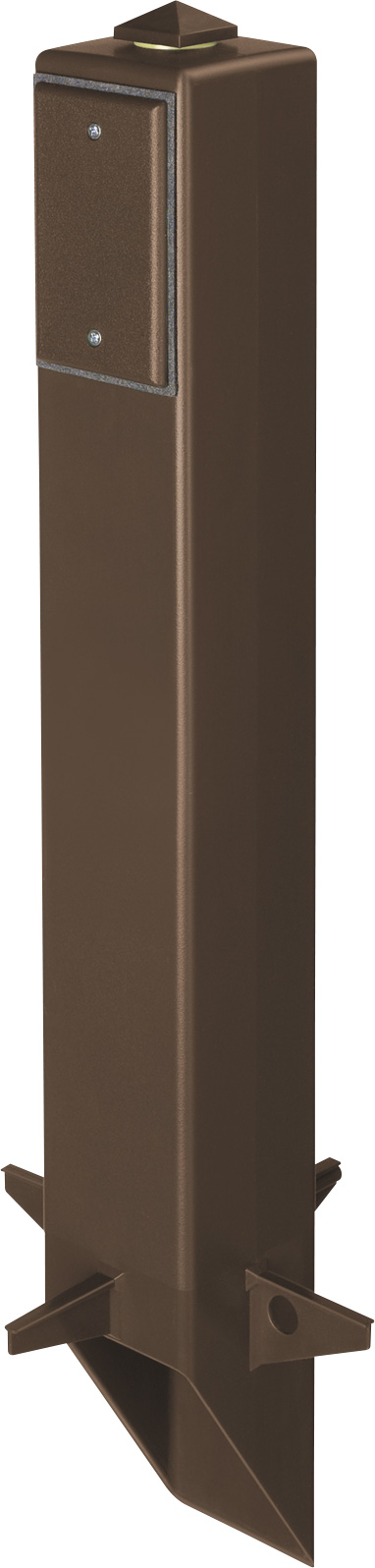

Description Gard-N-Post. 26" support for outdoor light fixtures or GFCI devices outdoors. Openings on both sides of post for back to back power or power on one side and low voltage on the other. Built in stabilizers for extra stability. Openings in stabilizers allow for insertion of extra support material. Angle Cut post for easy access to underground wiring. Two 1/2" Knockouts. Color Brown. Color is permanent, no chipping.
UPC 018997770929
Unit Packaging 1pc
Standard Packaging 6pcs
Country of Origin
Listing
Available w/ Grounding Clip Yes - Order Part Number GP26BRGC

Physical Information

Instructional Video GP26BR Instructional Video
Instruction Sheet GP26BR Instruction Sheet
Weight3.686 lbs/each
Height26.000"
Width3.361"
Color Bronze
Additional Color Options Black - GP26B
Green - GP26G
White - GP26W
Material(s)UV-Rated Plastic

Technical Information

Line Drawing GP26BR Line Drawing
ApplicationInstallation of a lighting fixture, GFCI device, or low voltage device outdoors
Knockout Size(s)(2) 1/2"

Comes With

(1)Standard knock-out plate
(1)Plastic top plug
(1)Plain locknut
(1)Low-voltage separator box
(1)Low-voltage knock-out plate
(1)Grounding locknut
(1)Gard-N-Post
(1)Fixture mounting bushing
(2)Blank plastic cover
(2)Blank cover gasket
(1)7" long ground wire
(2)#8 x 5/8" Long Screws
(4)#6 x 1/2" Long Screws
